2. Insert the hard drive into the drive bracket (1) and secure it by fastening the four screws
provided in the kit (2).

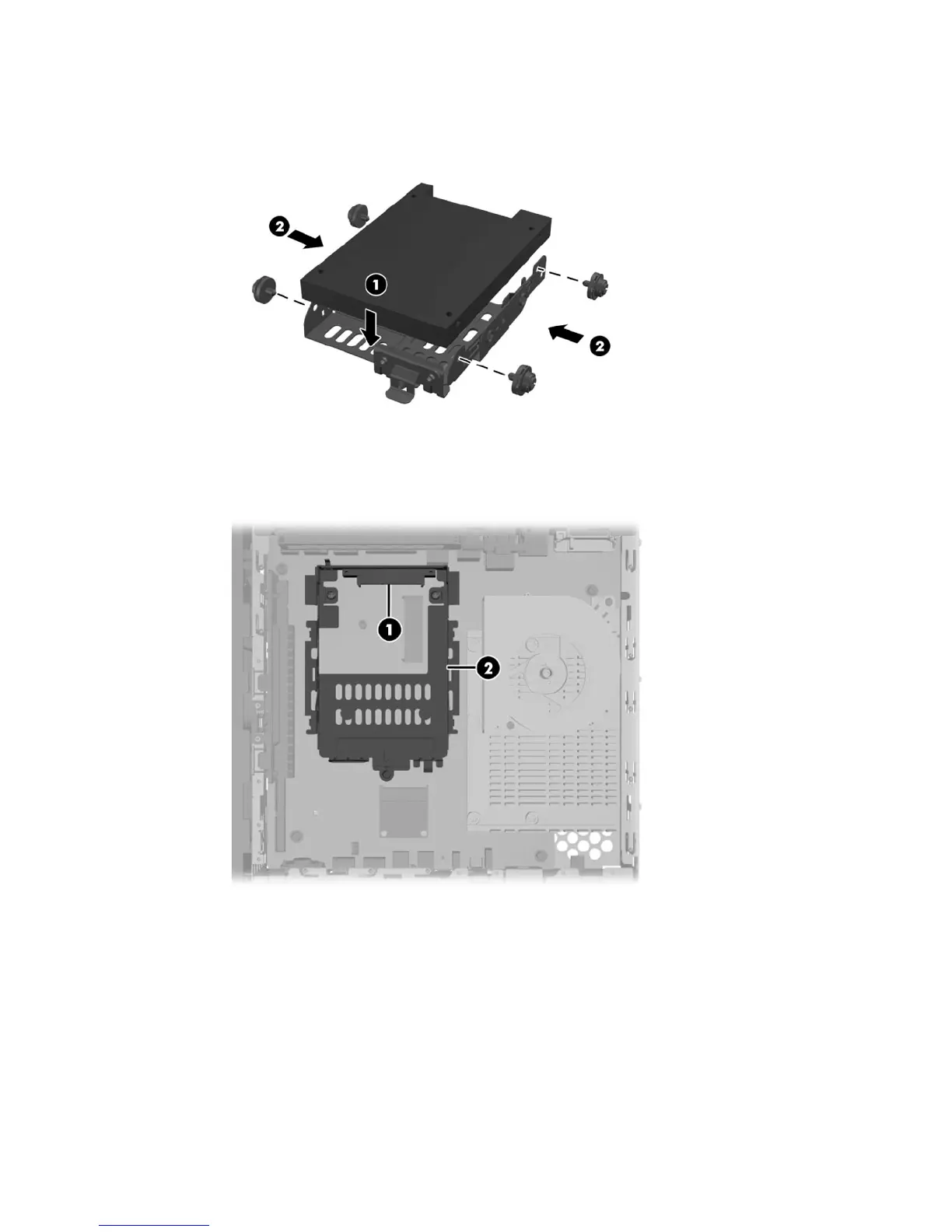

Figure 2-17 Inserting the hard drive into the drive bracket
3. Locate the internal hard drive connector (1) and retention bracket (2) on the system board.
Figure 2-18 Locating the hard drive connector and retention bracket on the system board
Installing thin client options 23
