To use the HP Quick Release with a VESA-configured thin client:
1. Using four 15 mm screws included in the mounting device kit, attach one side of the HP Quick
Release to the thin client as shown in the following illustration.

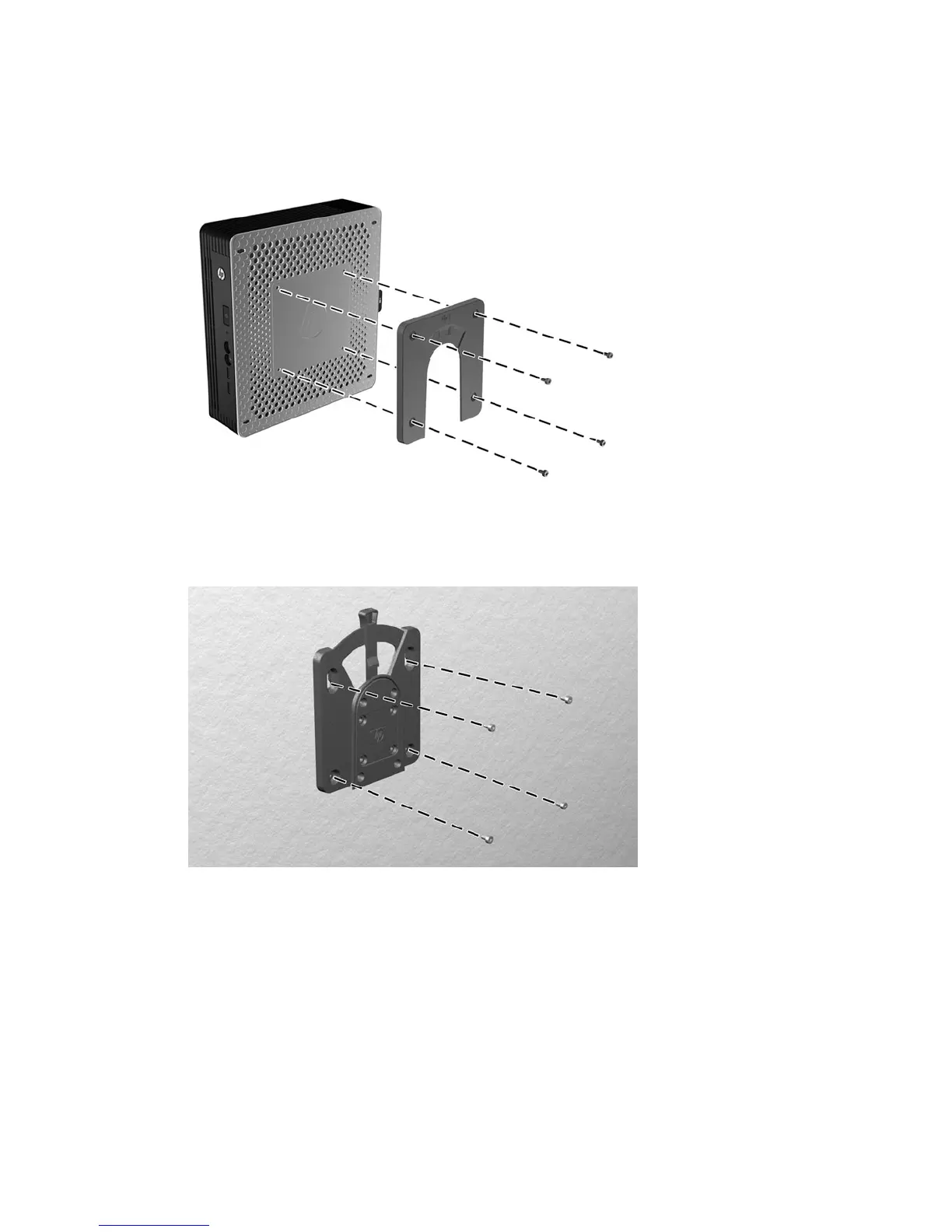

Figure 3-2 Connecting the HP Quick Release to the thin client
2. Using four screws included in the mounting device kit, attach the other side of the HP Quick
Release to the device to which you will mount the thin client. Make sure the release lever points
upward.
Figure 3-3 Connecting the HP Quick Release to another device
28 Chapter 3 Mounting the thin client
