9 Stereo Audio In (TV tuner
models only)
Connect audio for A/V input from a set-top box, digital video camera, or other
video device.
10 IR emitter (blaster) (select
models only)
Adhere to your TV set-top box IR receiver area to receive the remote control signal
while watching and recording TV programs. This is not required if you do not use a
set-top box. A remote control is included with select models only.
11 USB 2.0 ports (2) Connect USB devices (USB 2.0) such as printers, external hard disk drives, digital
cameras, and MP3 players.
12 Audio Line In Connect MP3 players or other audio players. This connector is not for headphones
or a microphone.
13 Headphone jack Connect headphones to the port to listen to music without disturbing anyone.
14 Power connector Plug the power adapter into the computer.
15 Wireless keyboard and
mouse receiver
Preinstalled receiver for using a wireless keyboard and mouse.

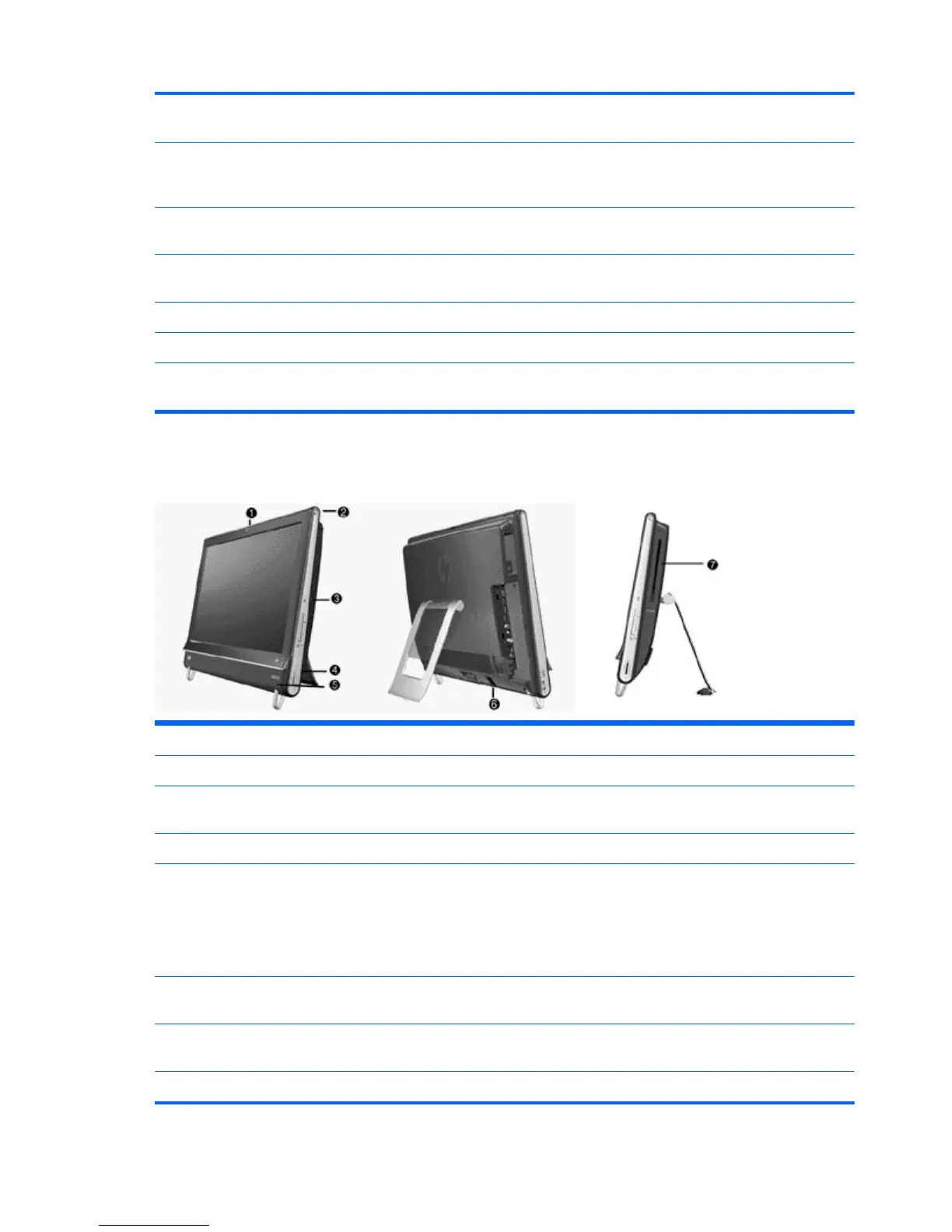

Activity LED indicator lights
Item Item Component
1 Webcam Indicates webcam activity.
2 Power Indicates the power state; blue indicates power on, and amber indicates Sleep
mode.
3 Hard disk drive Indicates hard disk drive activity.
4 Memory card reader Indicates memory card reader activity. When the LED is flashing, do not remove
your memory card.
When the LED is off, no card is inserted. A solid LED indicates that a card is
inserted with no read or write capacity. A flashing LED indicates that there is
memory card activity, and that a card has read/write capacity.
5 Remote control IR receiver
(select models only)
Indicates that your computer is working with your remote control to navigate
windows, record TV shows, and perform other activities in Windows Media Center.
6 Wireless keyboard and
mouse receiver
Indicates wireless signals received from the wireless keyboard and mouse. The LED
is visible from the back of the computer.
7 Optical Disc Drive Indicates Optical Disc Drive is in use.
6 Chapter 2 Components

HP TOUCHSMART 9100 Specifications

General

Processor cache	2 MB
Processor cores	2
Processor family	Intel® Core™2 Duo
Processor frequency	2.1 GHz
Processor cache type	L3
Processor manufacturer	Intel
Processor front side bus	800 MHz
Chassis type	All-in-One
Display included	Yes
Cabling technology	10/100/1000Base-T(X)
Networking features	Gigabit Ethernet
Graphics card family	NVIDIA
Floppy drive installed	No
Parallel ports quantity	0
Maximum graphics card memory	- MB
Compliance industry standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
Number of processors installed	1
Internal memory	4 GB
Memory clock speed	1333 MHz
Internal memory type	DDR3-SDRAM
Maximum internal memory	- GB
HDD interface	SATA
Optical drive type	DVD Super Multi
Discrete graphics card model	NVIDIA GeForce 200
Operating system installed	Windows 7 Professional
USB 2.0 ports quantity	5
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Product color	Black
Country of origin	China

Weight and Dimensions

Depth (with stand)	72 mm
Width (with stand)	579 mm
Height (with stand)	447 mm
Weight (with stand)	11500 g
