HP TOUCHSMART 9100 - Amp Board Shield; System Board Shield

Amp board shield
1. Prepare the computer for disassembly (see Preparing to disassemble the HP TouchSmart PC
on page 12).
2.
Place the computer face down on a soft, flat surface.
3. Remove the hard drive/memory cover (see
Hard drive/memory cover on page 14).
4. Remove the stand (see
Stand on page 17).
5. Remove the I/O cover (see
I/O cover on page 15).
6. Remove the feet (see
Feet on page 16).
7. Remove the back cover (see
Back cover on page 22).
8.

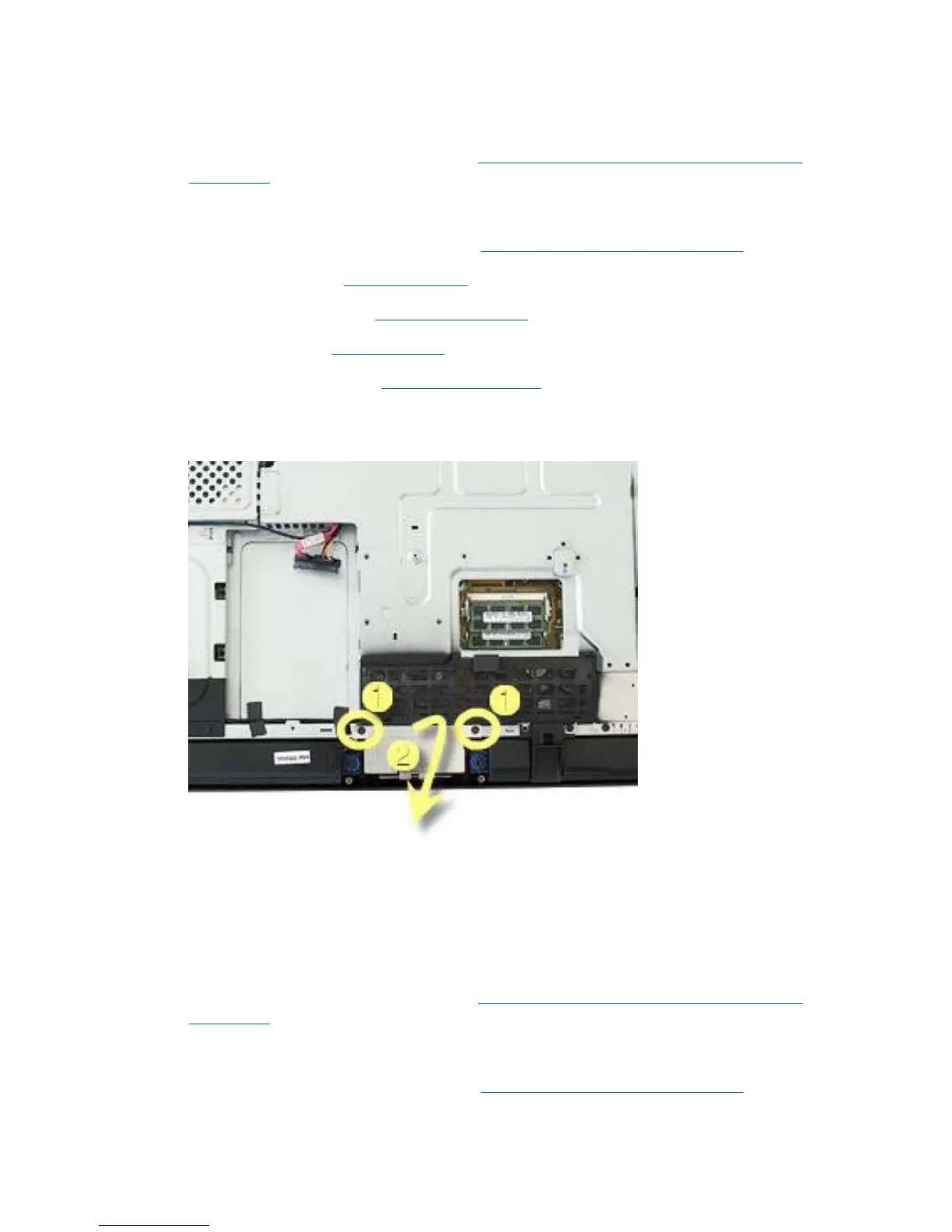

Remove the amp board shield by removing the two screws (1), rotating the top outward and then
lifting the shield off the computer (2).
To install the amp board shield, reverse the removal procedures.
System board shield
1.
Prepare the computer for disassembly (see
Preparing to disassemble the HP TouchSmart PC
on page 12).
2. Place the computer face down on a soft, flat surface.
3. Remove the hard drive/memory cover (see
Hard drive/memory cover on page 14).
28 Chapter 4 Removal and Replacement Procedures
