10.

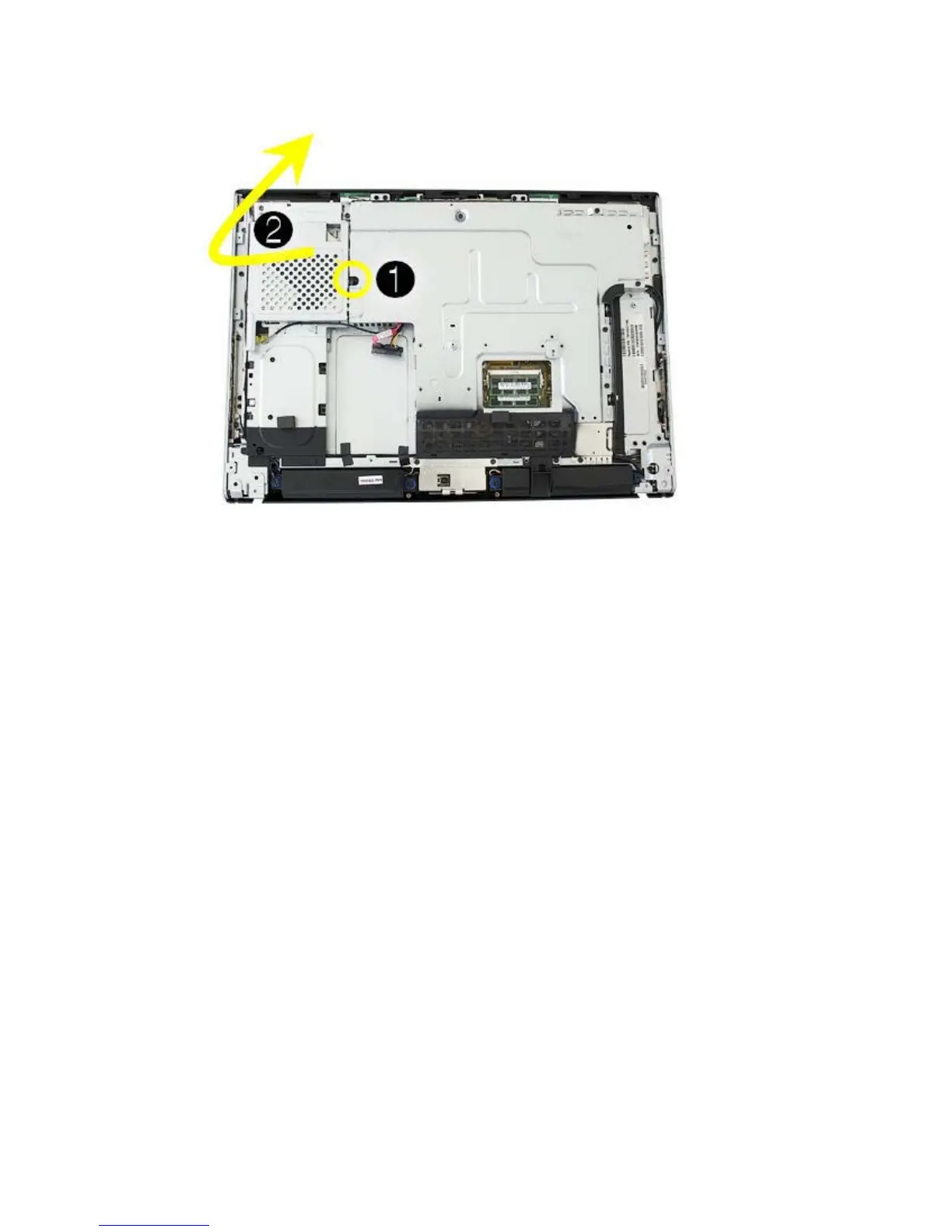

Slide the cage out to the side and pull it partially out of the unit (2).
11. Remove the power/data connector cable from the back of the optical drive, and then remove the
drive cage assembly from the computer.
To remove the optical drive from the cage:
1. Remove the four screws, two on each side of the cage.
2. Slide out the optical drive.
Optical drive
27
