HP TOUCHSMART 9100 Maintenance And Service Guide

8.

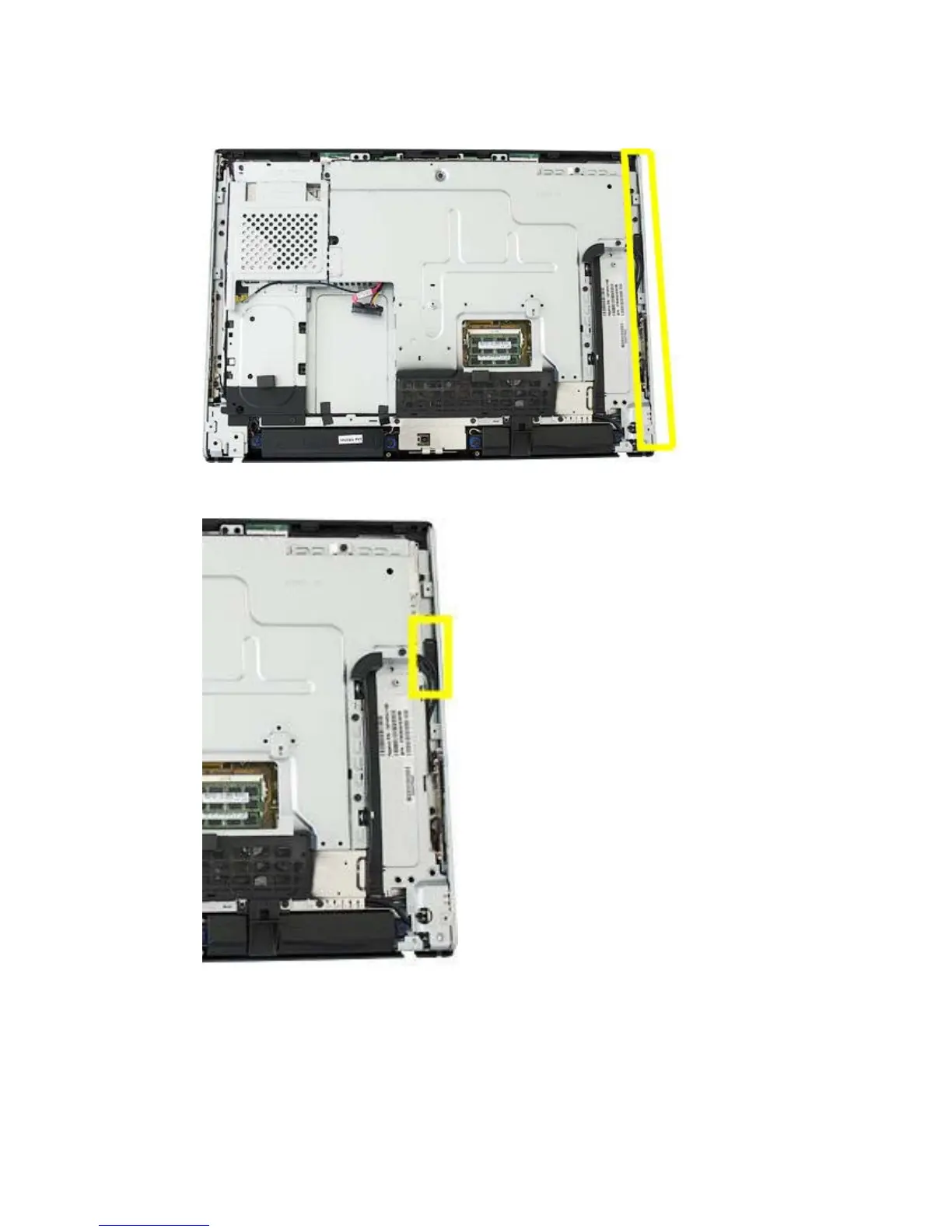

Partially remove the left side cap by lifting it straight up and off the computer and resting it next to
the computer with the cables attached.
9. Locate the Bluetooth holder and module assembly.
10. Push in on the side of the Bluetooth holder, and pull the holder off the computer.
11. Unplug the Bluetooth cable from the Bluetooth module, and then remove the holder assembly from
the computer.
12. Remove the Bluetooth module from the holder by pulling on the small arm at the mouth of the
holder, and then sliding the module out of the holder.
Bluetooth module
25

HP TOUCHSMART 9100 Specifications

General

Processor cache	2 MB
Processor cores	2
Processor family	Intel® Core™2 Duo
Processor frequency	2.1 GHz
Processor cache type	L3
Processor manufacturer	Intel
Processor front side bus	800 MHz
Chassis type	All-in-One
Display included	Yes
Cabling technology	10/100/1000Base-T(X)
Networking features	Gigabit Ethernet
Graphics card family	NVIDIA
Floppy drive installed	No
Parallel ports quantity	0
Maximum graphics card memory	- MB
Compliance industry standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
Number of processors installed	1
Internal memory	4 GB
Memory clock speed	1333 MHz
Internal memory type	DDR3-SDRAM
Maximum internal memory	- GB
HDD interface	SATA
Optical drive type	DVD Super Multi
Discrete graphics card model	NVIDIA GeForce 200
Operating system installed	Windows 7 Professional
USB 2.0 ports quantity	5
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Product color	Black
Country of origin	China

Weight and Dimensions

Depth (with stand)	72 mm
Width (with stand)	579 mm
Height (with stand)	447 mm
Weight (with stand)	11500 g
