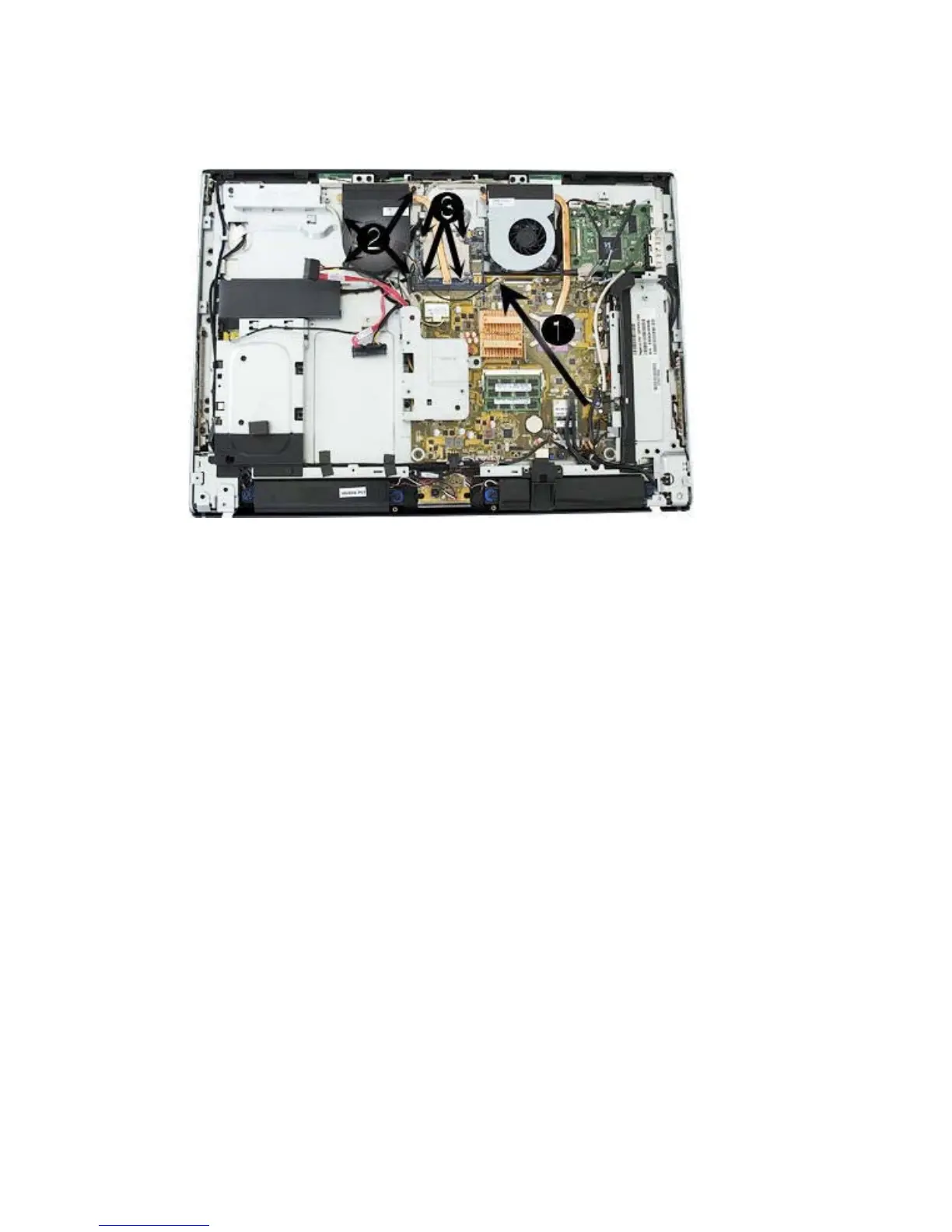

If the computer uses discrete graphics, disconnect the fan cable from the system board (1), remove
the four screws (2) that secure the fan to the computer, and then loosen the four captive screws
(3) that secure the heat sink to the graphics card in the order indicated on the heat sink.
11. Lift the thermal kit off the system board. The graphics card is located under the metal heat sink.
12. Remove the two screws that secure the graphics card to the system board.
13. Lift the card to a 45-degree angle, and then remove it from the slot at an angle.
– or –
14. If the computer uses UMA graphics, remove the two silver screws (1) that secure the graphics card
to the system board.
15. Remove the black screw (2) that secures the UMA DVI cable to the card.
16. Disconnect the DVI cable (3) and the 1394 cable (3) from the graphics card.
30 Chapter 4 Removal and Replacement Procedures

HP TOUCHSMART 9100 Specifications

General

Processor cache	2 MB
Processor cores	2
Processor family	Intel® Core™2 Duo
Processor frequency	2.1 GHz
Processor cache type	L3
Processor manufacturer	Intel
Processor front side bus	800 MHz
Chassis type	All-in-One
Display included	Yes
Cabling technology	10/100/1000Base-T(X)
Networking features	Gigabit Ethernet
Graphics card family	NVIDIA
Floppy drive installed	No
Parallel ports quantity	0
Maximum graphics card memory	- MB
Compliance industry standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
Number of processors installed	1
Internal memory	4 GB
Memory clock speed	1333 MHz
Internal memory type	DDR3-SDRAM
Maximum internal memory	- GB
HDD interface	SATA
Optical drive type	DVD Super Multi
Discrete graphics card model	NVIDIA GeForce 200
Operating system installed	Windows 7 Professional
USB 2.0 ports quantity	5
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Product color	Black
Country of origin	China

Weight and Dimensions

Depth (with stand)	72 mm
Width (with stand)	579 mm
Height (with stand)	447 mm
Weight (with stand)	11500 g
