18.

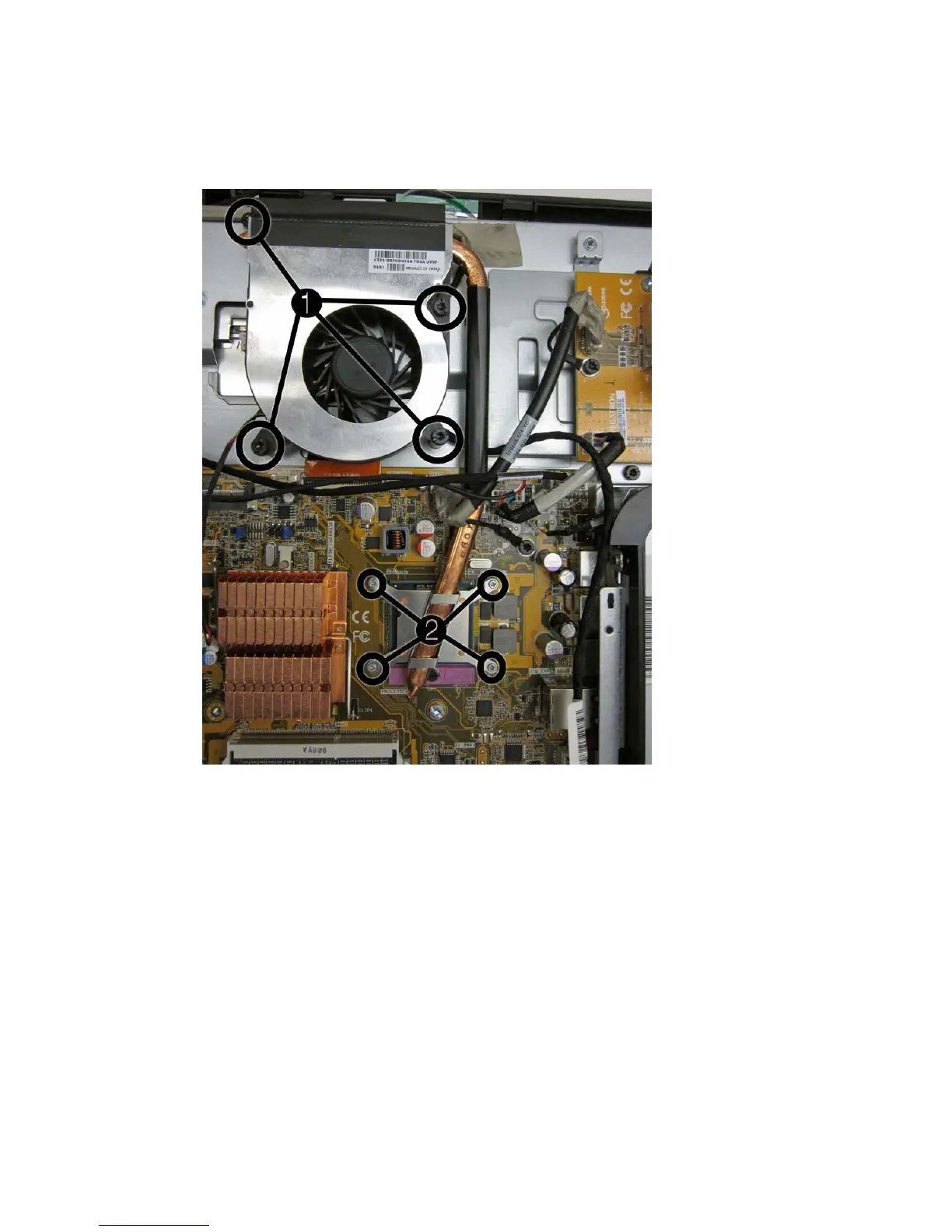

If the computer uses UMA graphics, disconnect the fan sink cable from the system board, remove
the four black screws (1) that secure the fan sink to the computer, remove the four silver screws
that secure the processor heat sink to the system board (2), and then lift the fan sink off the system
board.
19. Detach all remaining connectors from the system board.
System board
37
