HP TOUCHSMART 9100

23.

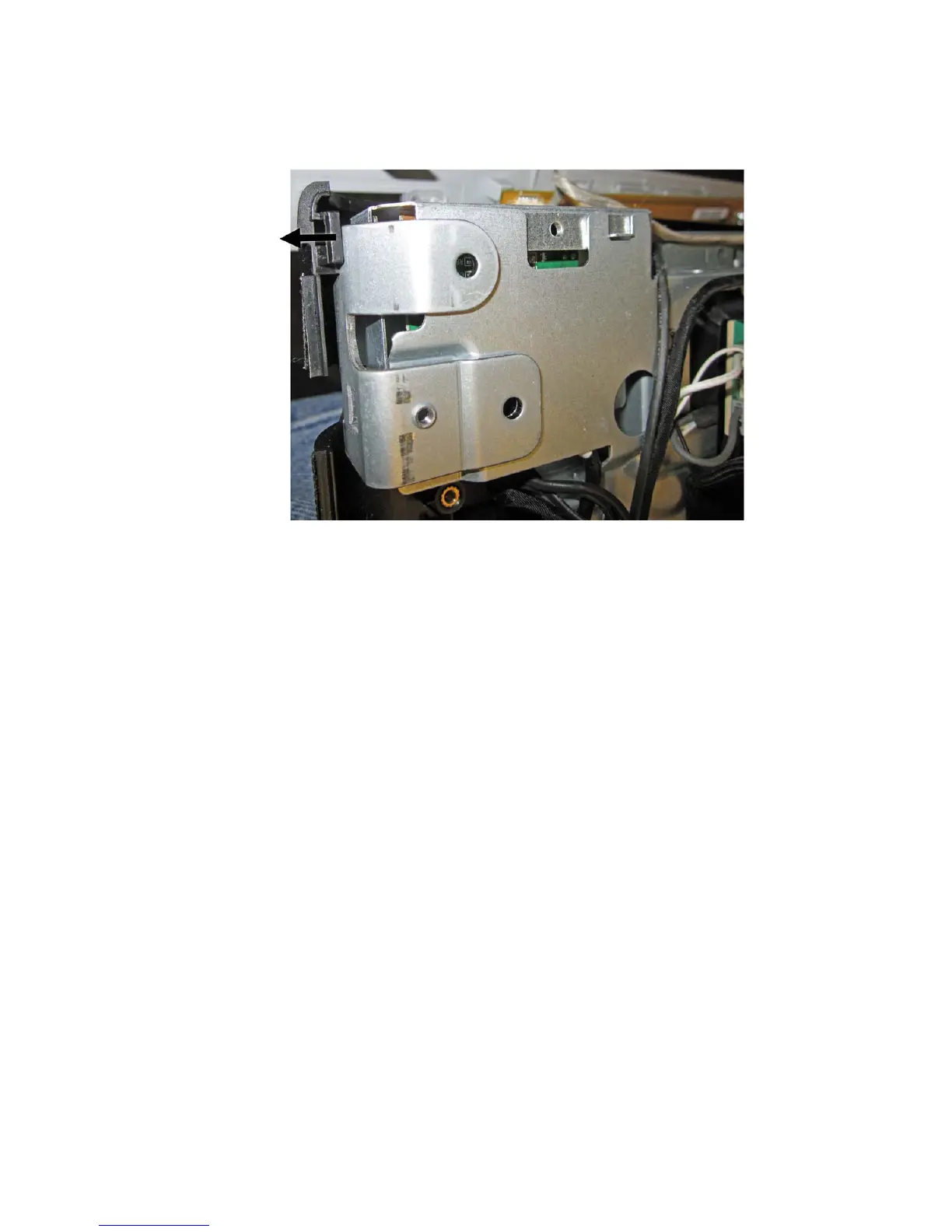

To remove the touch panel from the base pan, separate the plastics from the display panel
assembly by prying the plastic from both bottom corners of the computer (left side shown below),
and then lift the base pan from the touch panel assembly.
46 Chapter 4 Removal and Replacement Procedures
