HP TouchSmart 9300 Hardware Reference Guide

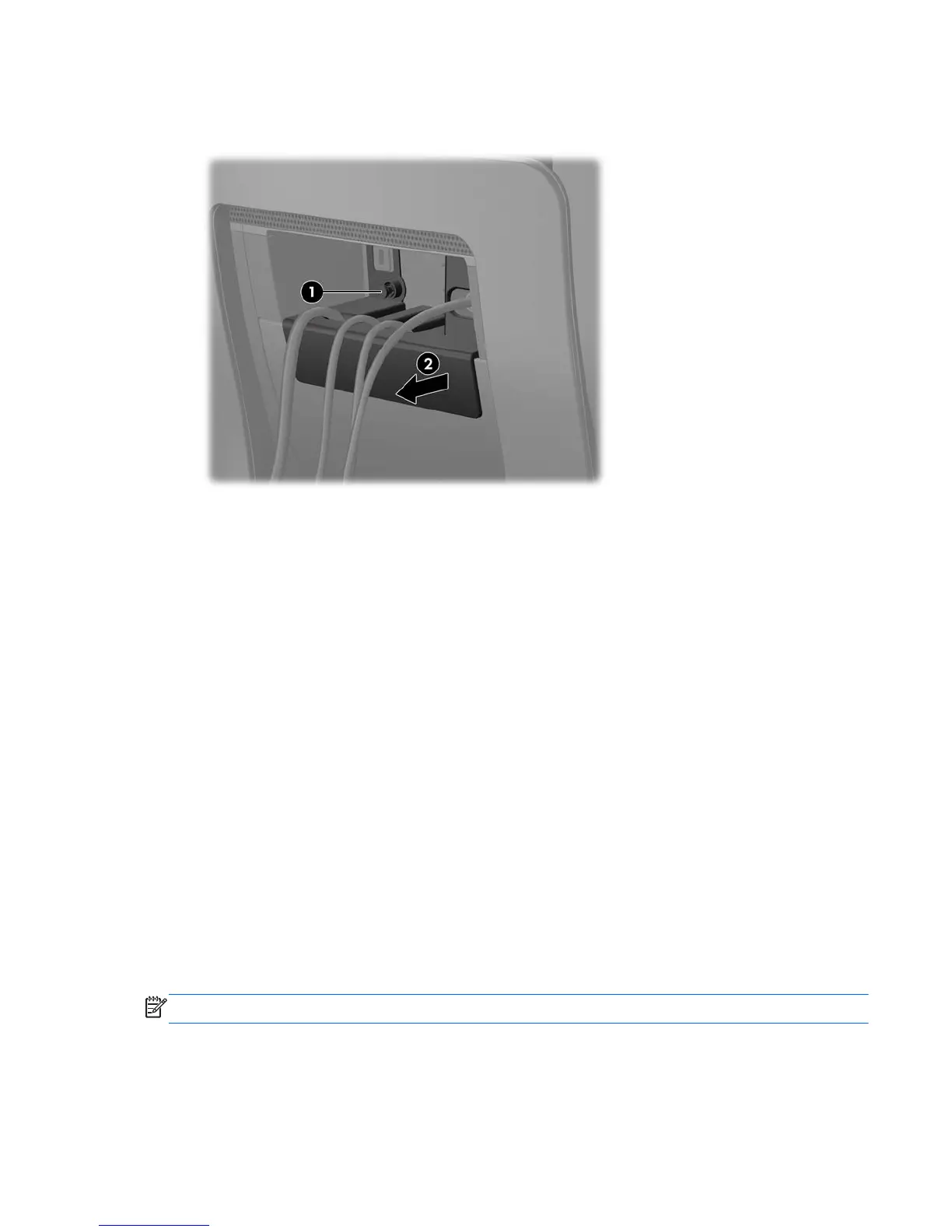

3. Loosen the captive screw (1) and slide the security cover out of the center cavity (2).
Figure 2-6 Removing the Rear Port Security Cover
Installing Memory
The computer comes with double data rate 3 synchronous dynamic random access memory (DDR3-
SDRAM) small outline dual inline memory modules (SODIMMs).
DDR3-SDRAM SODIMMs
For proper system operation, the SODIMMs must be:
●
industry-standard 204-pin
●
unbuffered non-ECC PC3-10600 DDR3-1333 MHz-compliant
●
1.5 volt DDR3-SDRAM SODIMMs
The DDR3-SDRAM SODIMMs must also:
●
support CAS latency 9 DDR3 1333 MHz (9-9-9 timing)
●
contain the mandatory Joint Electronic Device Engineering Council (JEDEC) specification
In addition, the computer supports:
●
512-Mbit, 1-Gbit, and 2-Gbit non-ECC memory technologies
●
single-sided and double-sided SODIMMs
●
SODIMMs constructed with x8 and x16 devices; SODIMMs constructed with x4 SDRAM are not
supported
NOTE: The system will not operate properly if you install unsupported SODIMMs.
ENWW Installing Memory 13

HP TouchSmart 9300 Specifications

General

Resolution	1920 x 1080
Audio	Integrated High Definition Audio
Storage	1TB HDD
Display	23-inch
Operating System	Windows 7
Networking	10/100/1000 Gigabit Ethernet
Wireless	802.11b/g/n
Ports	USB 2.0, Headphone, Microphone, Ethernet
