13. Disconnect the display cable from the display panel by pressing in to the side tabs and pulling
the cable from the connector.

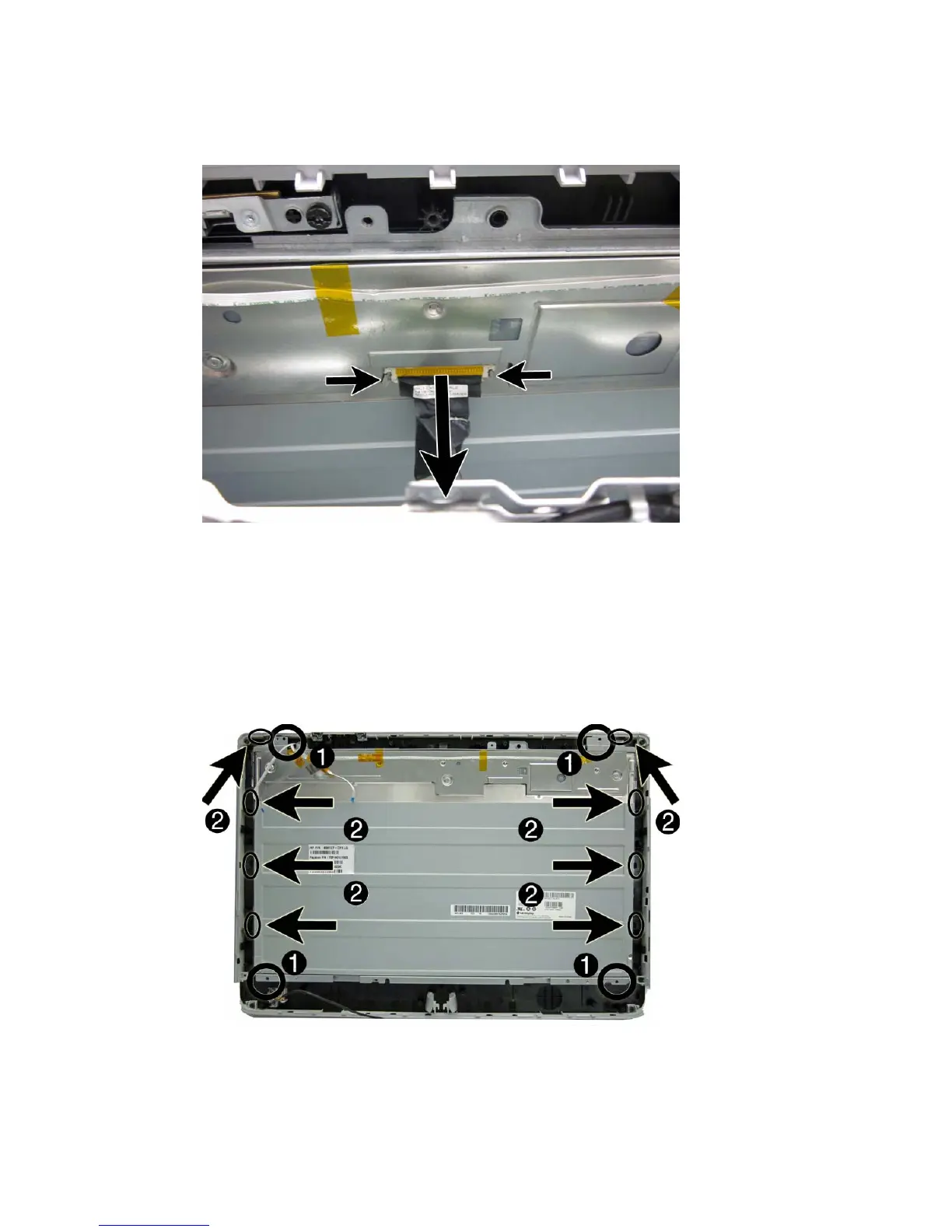

Figure 7-59 Disconnecting the display cable from the display panel
14. Remove the four Torx screws (1) that secure the display panel to the front bezel.
15. Disengage the tabs (2) that secure the display panel to the bezel, as follows.
●
Left: 3 tabs
●
Right: 3 tabs
●
Top: 2 tabs
Figure 7-60 Removing the display panel from the front bezel
16. Lift the display panel off the front bezel.
Front Bezel and Display Panel 89
