Powering on the switch for the first time
Setting up the configuration environment
To set up the configuration environment, connect a terminal (a PC in this example) to the console port on
the switch with a console cable.

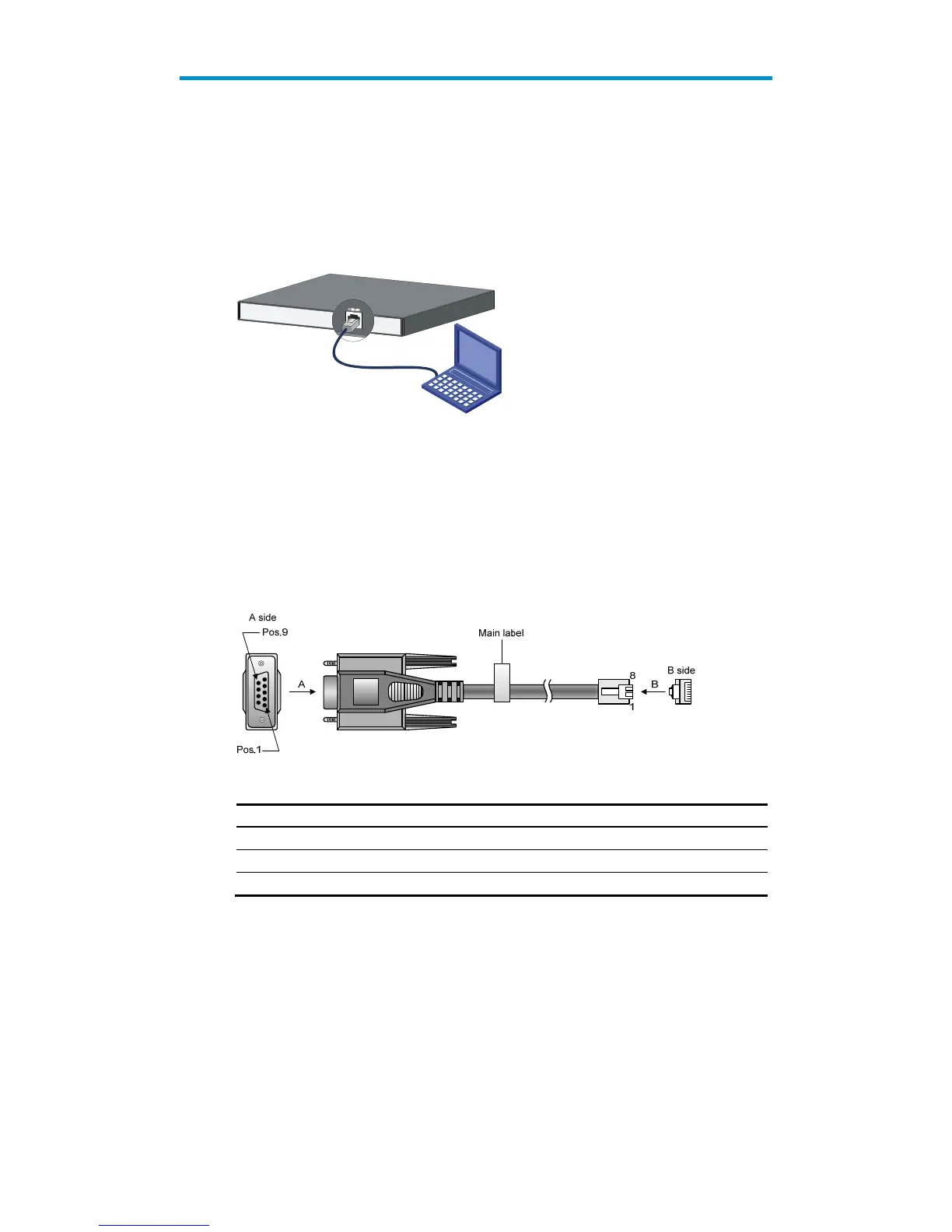

Figure 27 Network diagram for configuration environment setup
Connecting the console cable
Console cable
A console cable is an 8-core shielded cable, with a crimped RJ-45 connector at one end for connecting
to the console port of the switch, and a DB-9 female connector at the other end for connecting to the
serial port on the console terminal.
Figure 28 Console cable
Table 15 Console cable pinouts
RJ-45 Si
g
nal
Direction
DB-9
1 RTS
←
7
2 DTR
←
4
3 TXD
←
3

HP V1910 Series Specifications

General

Model	HP V1910 Series
Ports	8, 24, or 48
Uplink Ports	Varies by model
Switching Capacity	Varies by model (Up to 104 Gbps)
Forwarding Rate	Varies by model (Up to 77.3 Mpps)
Layer	Layer 2
Management	Web-managed
VLAN Support	Yes
QoS	Yes
MAC Address Table Size	8, 192 entries
Jumbo Frame Support	Yes
Power Supply	Internal
Power Consumption	Varies by model
Dimensions	Varies by model
Weight	Varies by model
Operating Temperature	32°F to 113°F (0°C to 45°C)
Operating Humidity	10% to 90% (non-condensing)
