30
Step5 Click Properties in the HyperTerminal window to enter the Switch Properties dialog box. Click the
Settings tab, set the emulation to VT100, and then click OK.

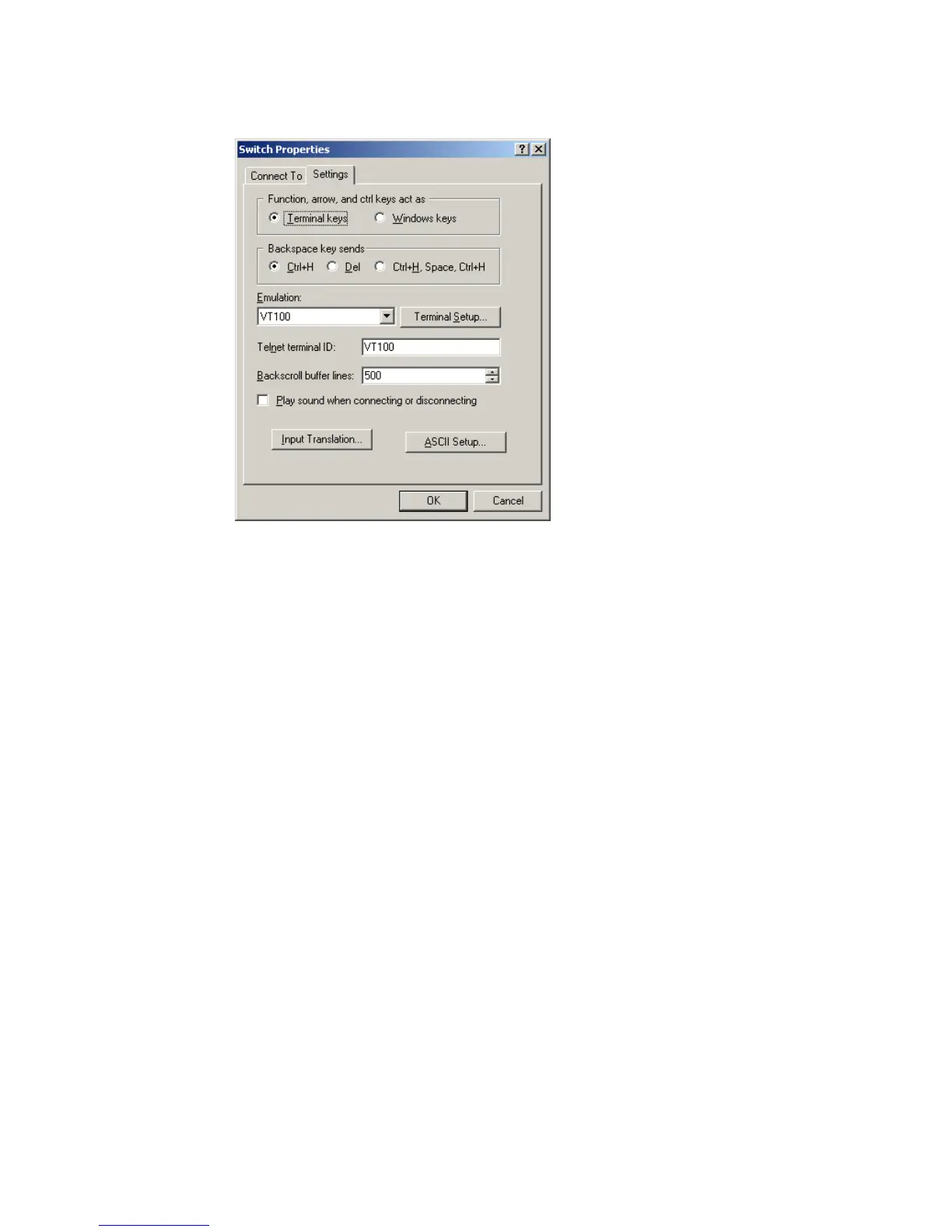

Figure 33 Set terminal emulation in Switch Properties dialog box
Powering on the switch
Checking before power-on
Before powering on the switch, verify that:
The power cord is properly connected.
The power supply voltage meets the requirement of the switch.
The console cable is properly connected; the terminal or PC used for configuration has been
started; and the configuration parameters have been set.
Powering on the switch
The V1910 switches have the same Boot ROM display style. This document uses the Boot ROM output
information on the HP V1910-24G Switch JE006A as an example:
Starting......
************************************************************************
* *
* HP V1910-24G Switch JE006A BOOTROM, Version 135 *
