HP V1910 Series User Manual

29

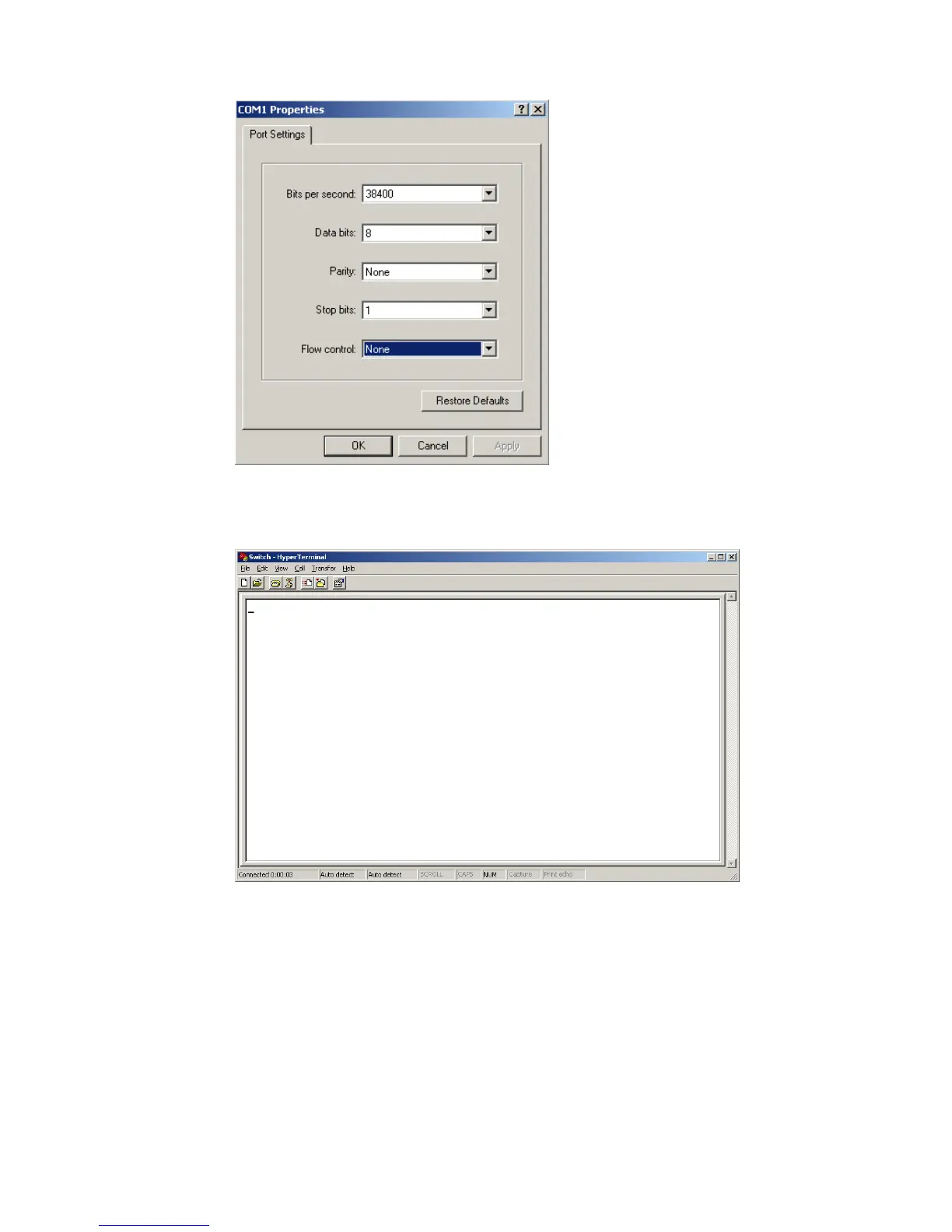

Figure 31 Set the serial port parameters
Step4 Click OK after setting the serial port parameters and the system enters the HyperTerminal window shown
below.
Figure 32 HyperTerminal window

HP V1910 Series Specifications

General

Model	HP V1910 Series
Ports	8, 24, or 48
Uplink Ports	Varies by model
Switching Capacity	Varies by model (Up to 104 Gbps)
Forwarding Rate	Varies by model (Up to 77.3 Mpps)
Layer	Layer 2
Management	Web-managed
VLAN Support	Yes
QoS	Yes
MAC Address Table Size	8, 192 entries
Jumbo Frame Support	Yes
Power Supply	Internal
Power Consumption	Varies by model
Dimensions	Varies by model
Weight	Varies by model
Operating Temperature	32°F to 113°F (0°C to 45°C)
Operating Humidity	10% to 90% (non-condensing)
