HP V1910 Series User Manual

28

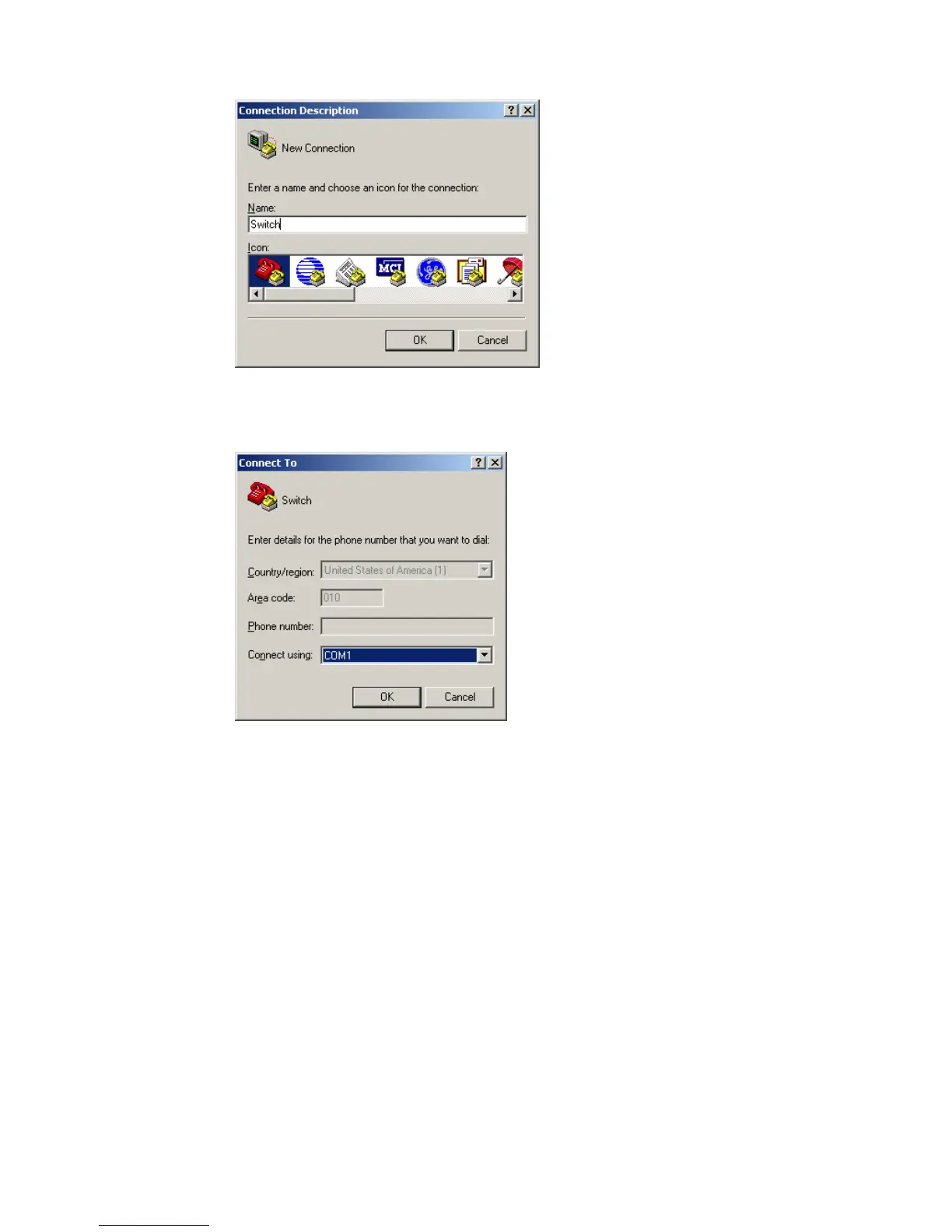

Figure 29 Connection description of the HyperTerminal
Step2 Type the name of the new connection in the Name text box and click OK. The following dialog box
appears. Select the serial port to be used from the Connect using drop-down list.
Figure 30 Set the serial port used by the HyperTerminal connection
Step3 Click OK after selecting a serial port. The following dialog box appears. Set Bits per second to 38400,
Data bits to 8, Parity to None, Stop bits to 1, and Flow control to None.

HP V1910 Series Specifications

General

Model	HP V1910 Series
Ports	8, 24, or 48
Uplink Ports	Varies by model
Switching Capacity	Varies by model (Up to 104 Gbps)
Forwarding Rate	Varies by model (Up to 77.3 Mpps)
Layer	Layer 2
Management	Web-managed
VLAN Support	Yes
QoS	Yes
MAC Address Table Size	8, 192 entries
Jumbo Frame Support	Yes
Power Supply	Internal
Power Consumption	Varies by model
Dimensions	Varies by model
Weight	Varies by model
Operating Temperature	32°F to 113°F (0°C to 45°C)
Operating Humidity	10% to 90% (non-condensing)
