HP X27qc - HDMI Connector CN5101; DP Connector CN551

17
HDMI connector CN5101
Repair the HDMI connector:

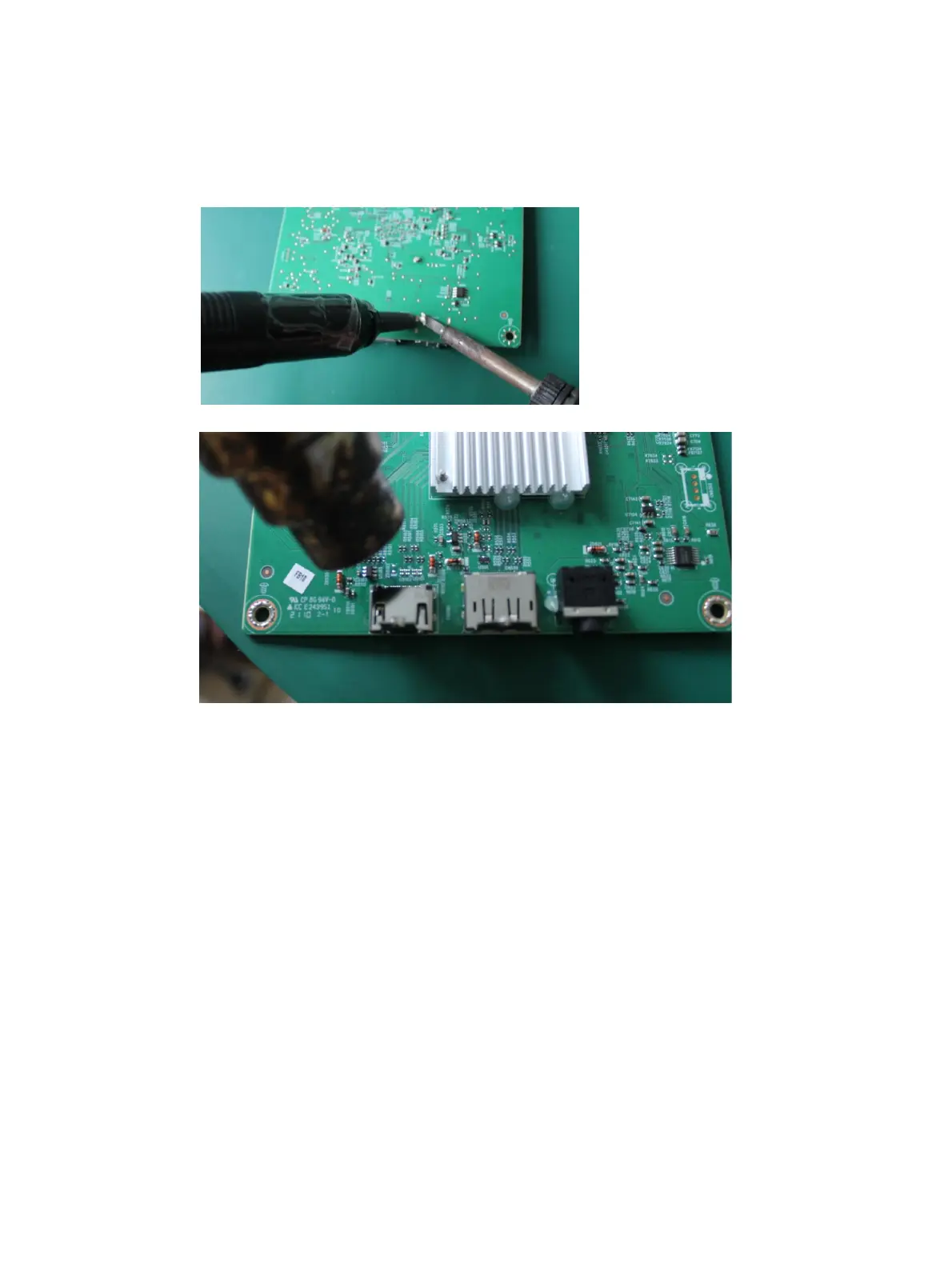

1) Use a soldering iron and a de-soldering pump to remove as much solder as possible from the
pin.
2) Use a hot air gun to melt the solder on the pins.
3) Lift the CN5101 connector from the circuit board.
4) Place the new component on the circuit board. Be sure that it matches the circuit board
footprint.
5) Solder the new component.
DP connector CN551
Repair the DP connector:
1) Use a soldering iron and a de-soldering pump to remove as much solder as possible from the
pin.
