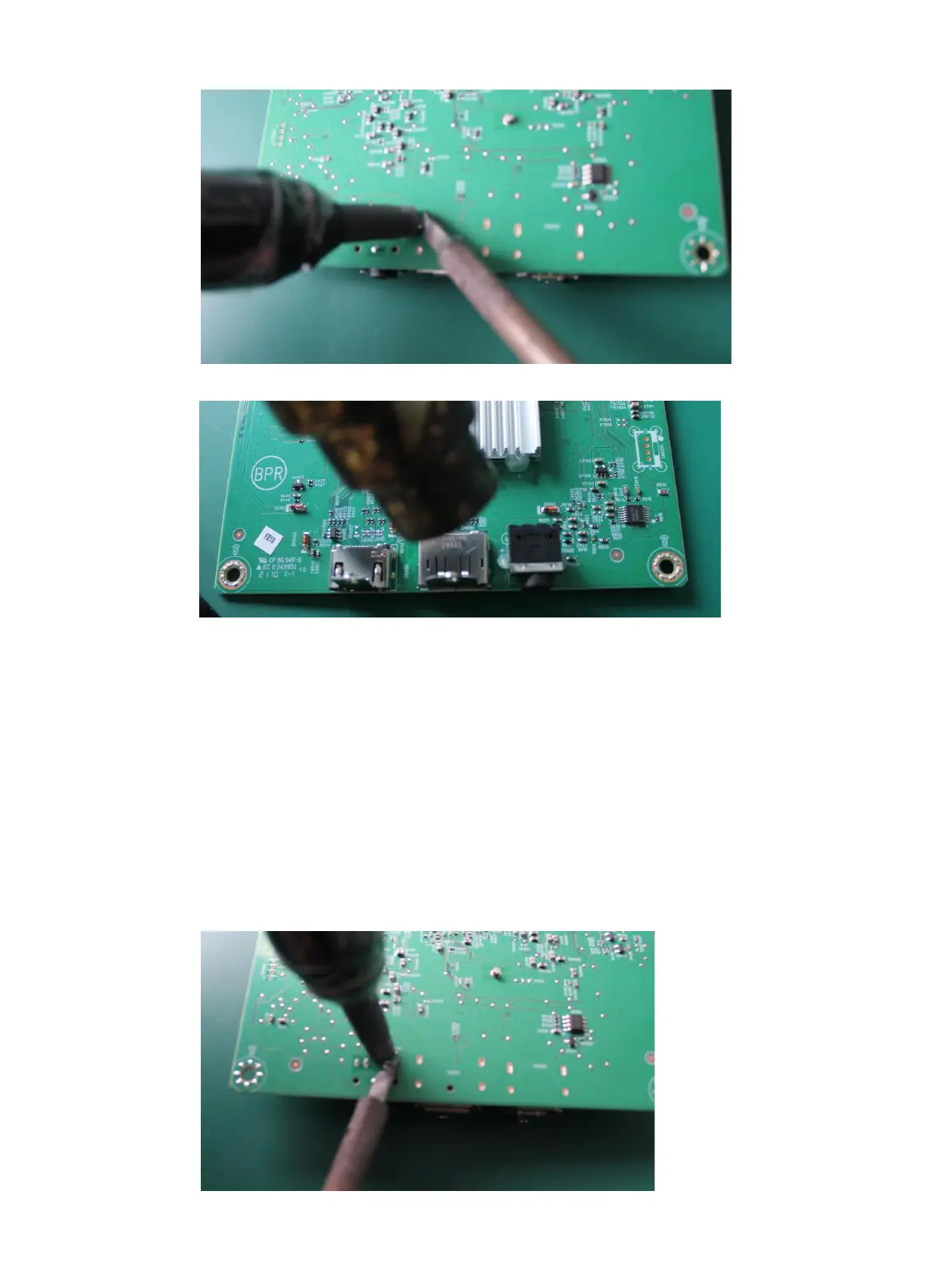

2) Use a hot air gun to melt the solder on the pins.

3) Lift the CN551 connector from the circuit board.

4) Place the new component on the circuit board. Be sure that it matches the circuit board

footprint.

5) Solder the new component.

AUDIO connector CN601

Repair the AUDIO connector:

1) Use a soldering iron and a de-soldering pump to remove as much solder as possible from the

pin.
