5.

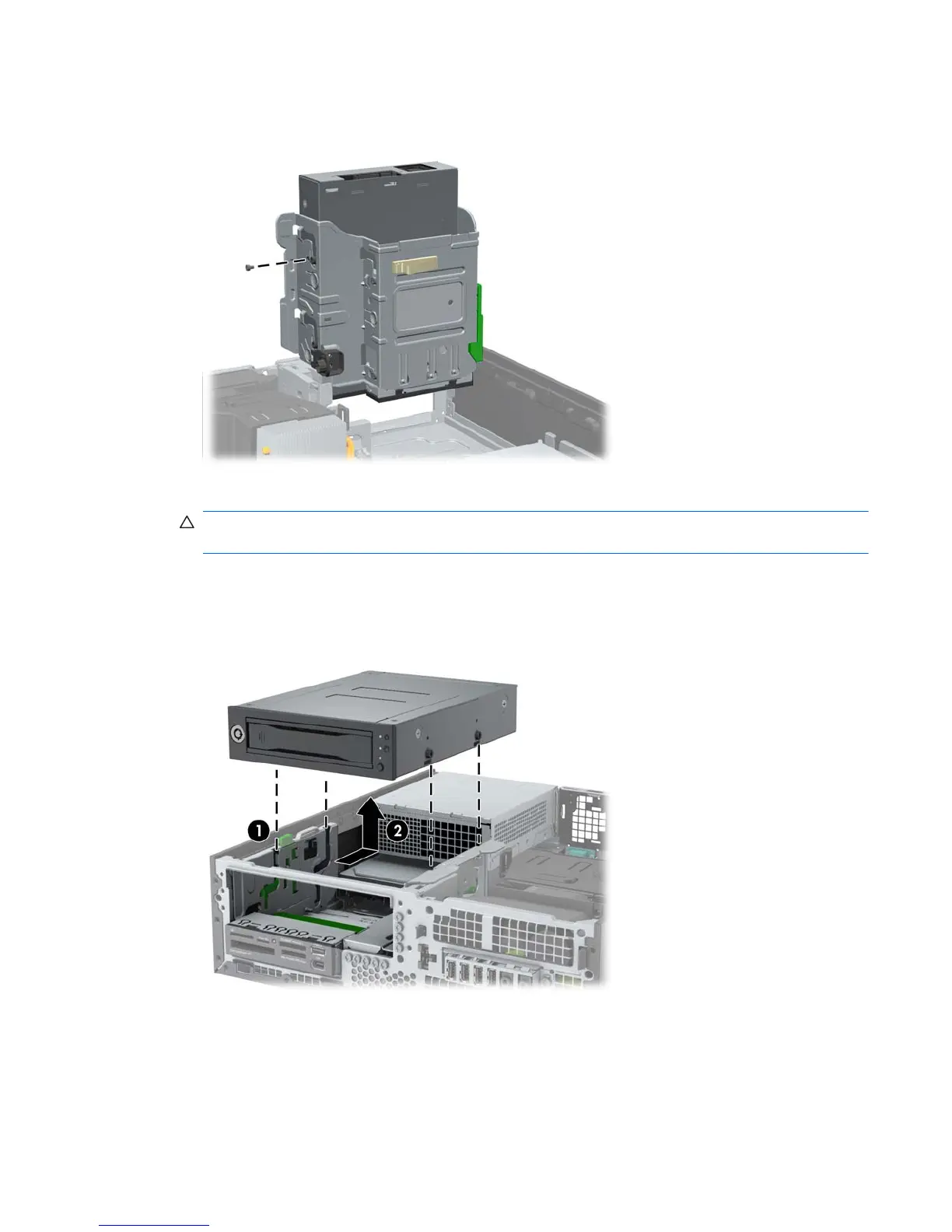

If necessary, remove the shipping screw from the side of the drive cage.
Figure 5-27 Removing the shipping screw
6.
Carefully rotate the drive cage back down to its normal position.
CAUTION: Check clearances on the cables when you rotate the drive cage. The cage may
pinch the cables and damage them if they are not routed correctly.
7.
Press down on the green drive retainer button located on the left side of the drive to disengage the
drive from the drive cage (1). While pressing the drive retainer button, slide the drive back until it
stops, then lift it up and out of the drive cage (2).
Figure 5-28 Removing the DX115 unit
ENWW
Removing and installing components
93
