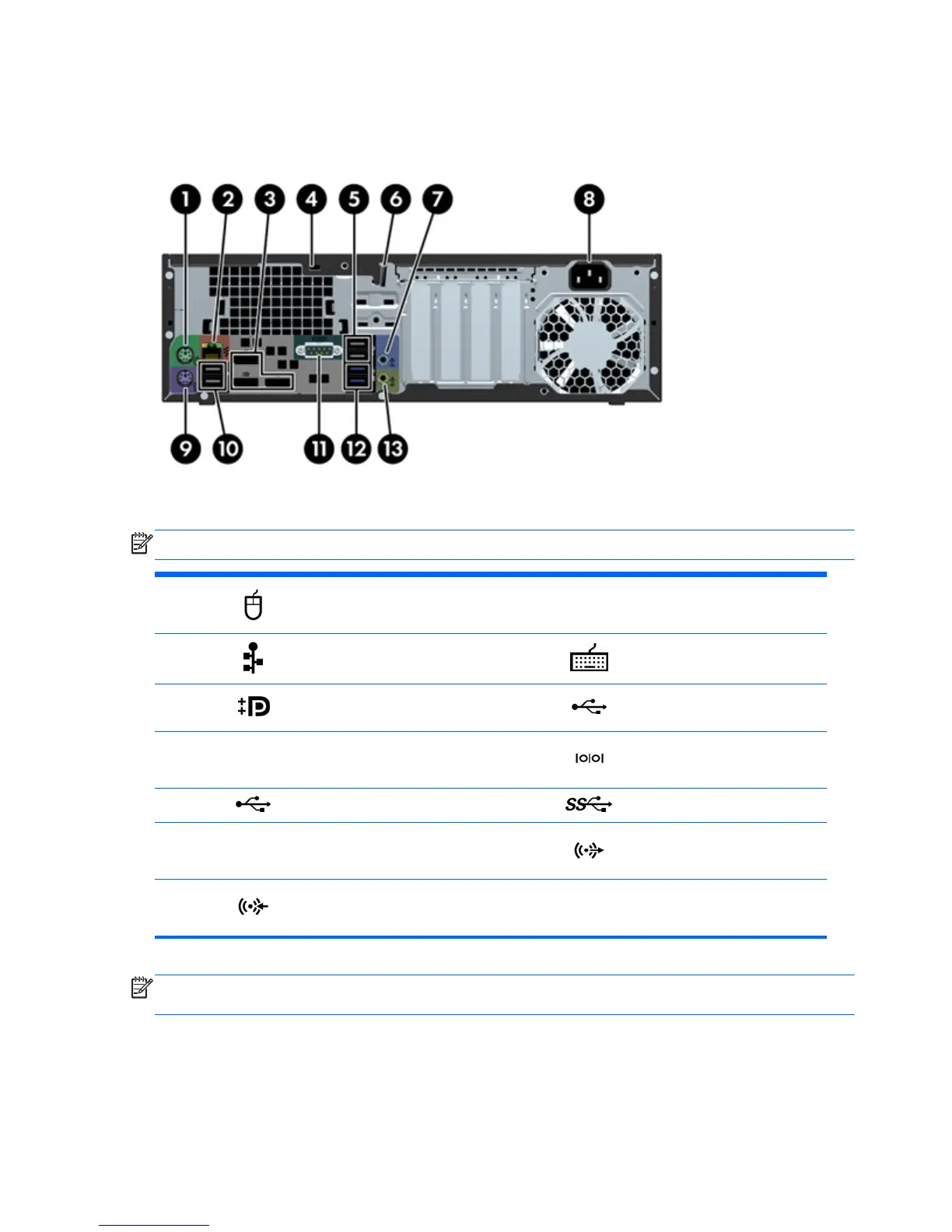

Rear panel components
NOTE: The labels for the rear panel connectors use industry-standard icons and colors.
1 PS/2 mouse connector 8 Power cord connector
2
RJ-45 Ethernet connector 9 PS/2 keyboard connector
3
Dual-Mode DisplayPort (DP++)
(3)
10
USB 2.0 ports (2)
4 Cable lock slot 11
Serial port (monitor)
5
USB 2.0 ports (2) 12 USB 3.0 ports (2)
6 Padlock loop lock 13
Audio line-out connector
7
Audio line-in connector
NOTE: The labels for the rear panel connectors use
industry-standard icons and colors.
NOTE:
The DP++ ports are not supported when the system is configured with Intel® Xeon® E3-12x0 v3 processors. Also, if a discrete graphics card
is installed, these ports are disabled by default.
4 Chapter 1 Hardware overview
