HP Z230

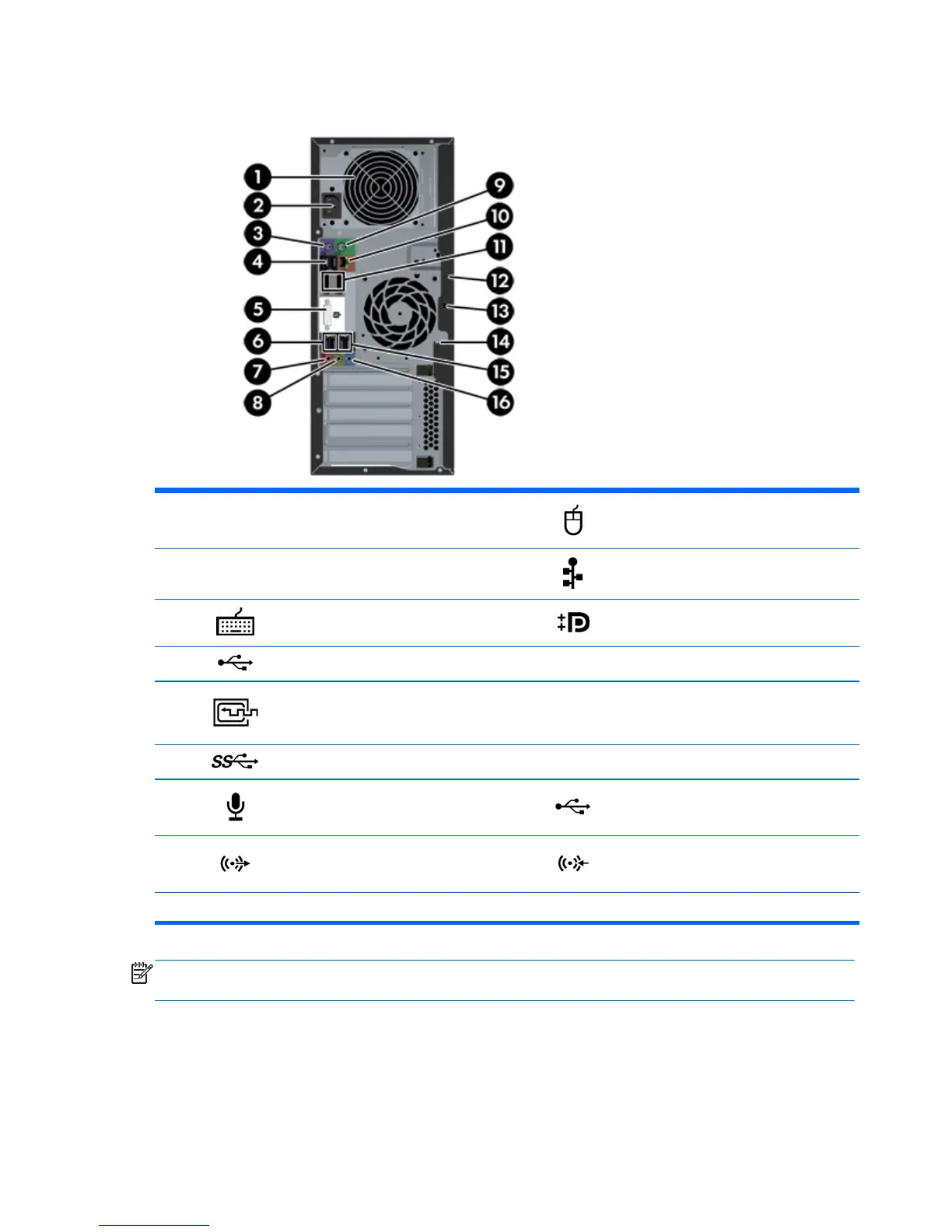

Rear panel components
1
Power supply Built-In Self Test (BIST)
LED
9 PS/2 mouse connector
2 Power cord connector 10
RJ-45 ethernet connector
3
PS/2 keyboard connector 11 Dual-Mode DisplayPort (DP++) (2)
4
USB 2.0 ports (2) 12 Universal chassis clamp opening
5
DVI-I connector 13 Cable lock slot
6
USB 3.0 ports (2) 14 Padlock loop
7
Microphone connector 15 USB 2.0 ports (2)
8
Audio line-out connector 16 Audio line-in connector
NOTE: The labels for the rear panel connectors use industry-standard icons and colors.
NOTE:
The DP and DVI-I ports are not supported when the system is configured with Intel Xeon E3-12x0 v3 processors. Also, if a discrete graphics
card is installed these ports are disabled by default.
