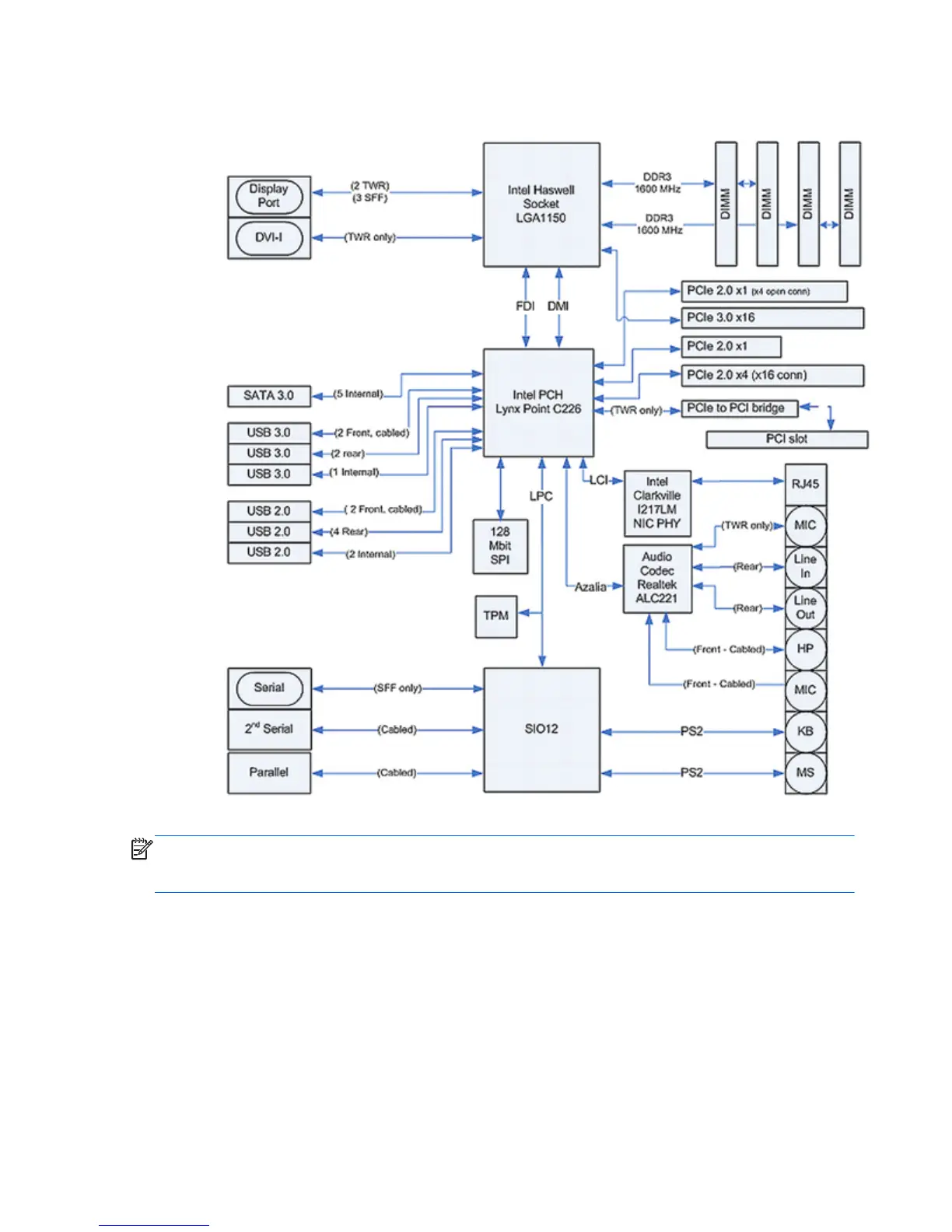

System board architecture
NOTE: The PCIe designators indicate the mechanical connector size and number of electrical PCIe
lanes routed to an expansion slot. For example, x16(4) means that the expansion slot is mechanically
a x16 length connector, with 4 PCIe lanes supported.
16 Chapter 1 Hardware overview
