9. When the top tabs release, rotate the top of the fan holder/card guide into the chassis (1) so that
the bottom tabs release from the metal grid on the chassis, and then slide the guide away from the
front panel (2).

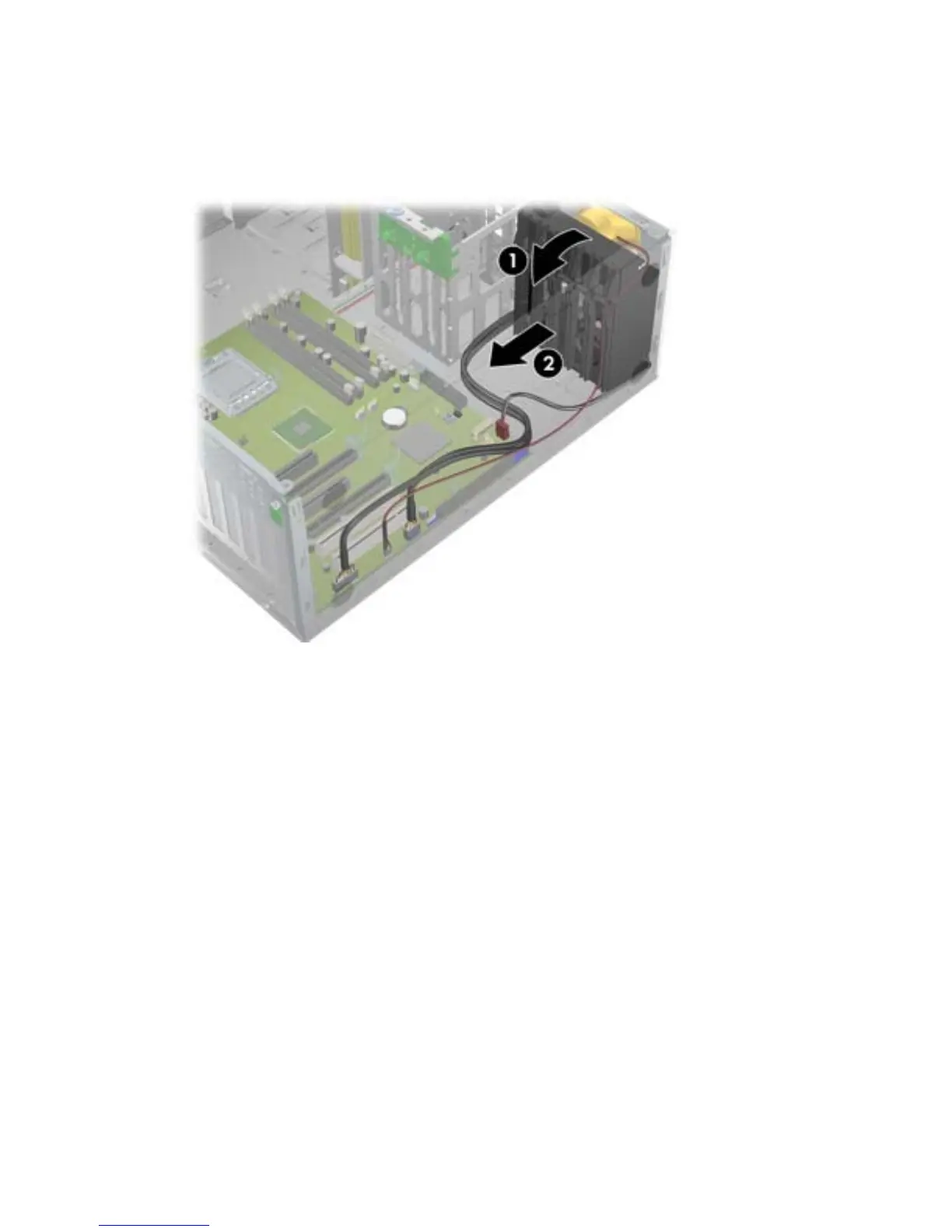

Figure 5-29 Freeing the fan assembly from the chassis
