10. Rotate the fan holder/card guide assembly slightly to one side (1), and then lift it up and out of the
chassis (2).

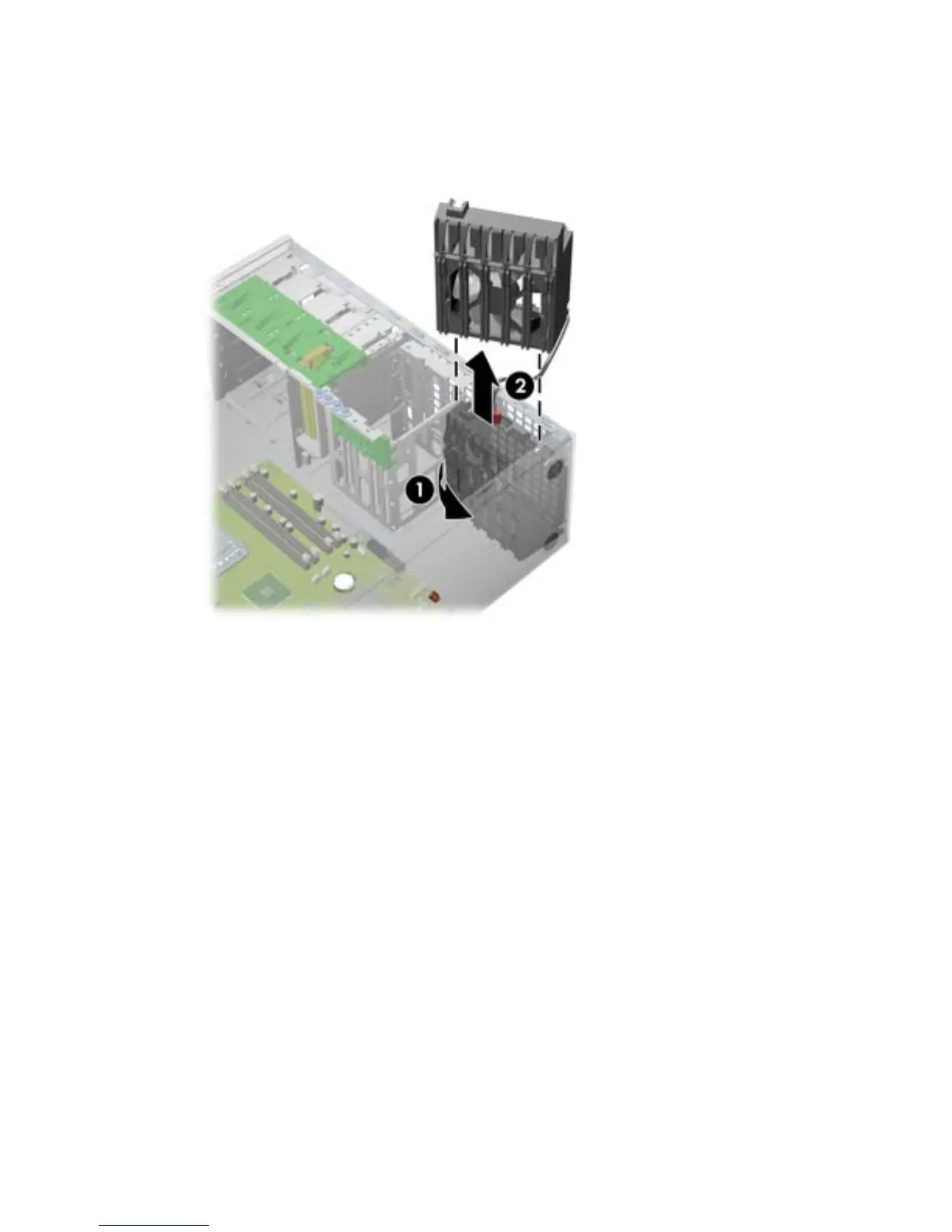

Figure 5-30 Removing the fan holder/card guide assembly
ENWW
Removing and installing components
103
