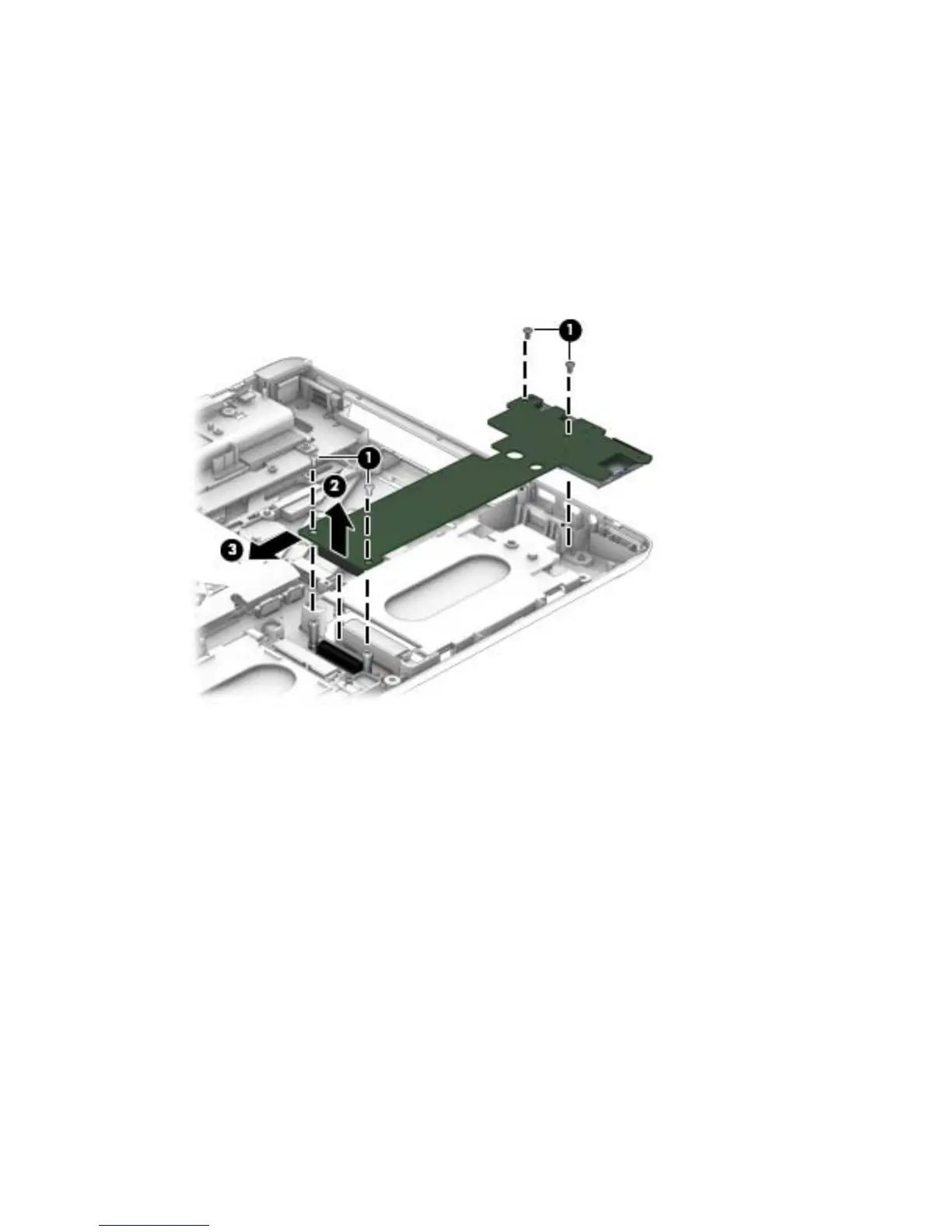

Remove the audio/USB board:
1. Position the computer upright and open as far as possible.
2. Remove the four Phillips M2.5x4.0 screws (1) that secure the audio/USB board to the base
enclosure.
3. Lift up on the left side of the board to disengage it from the system board connector (2).
4. Pull the board up and toward the left to disengage the ports on the right side of the board from the
base enclosure, and then remove it from the base enclosure (3).
Reverse this procedure to install the audio/USB board.
94 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts
