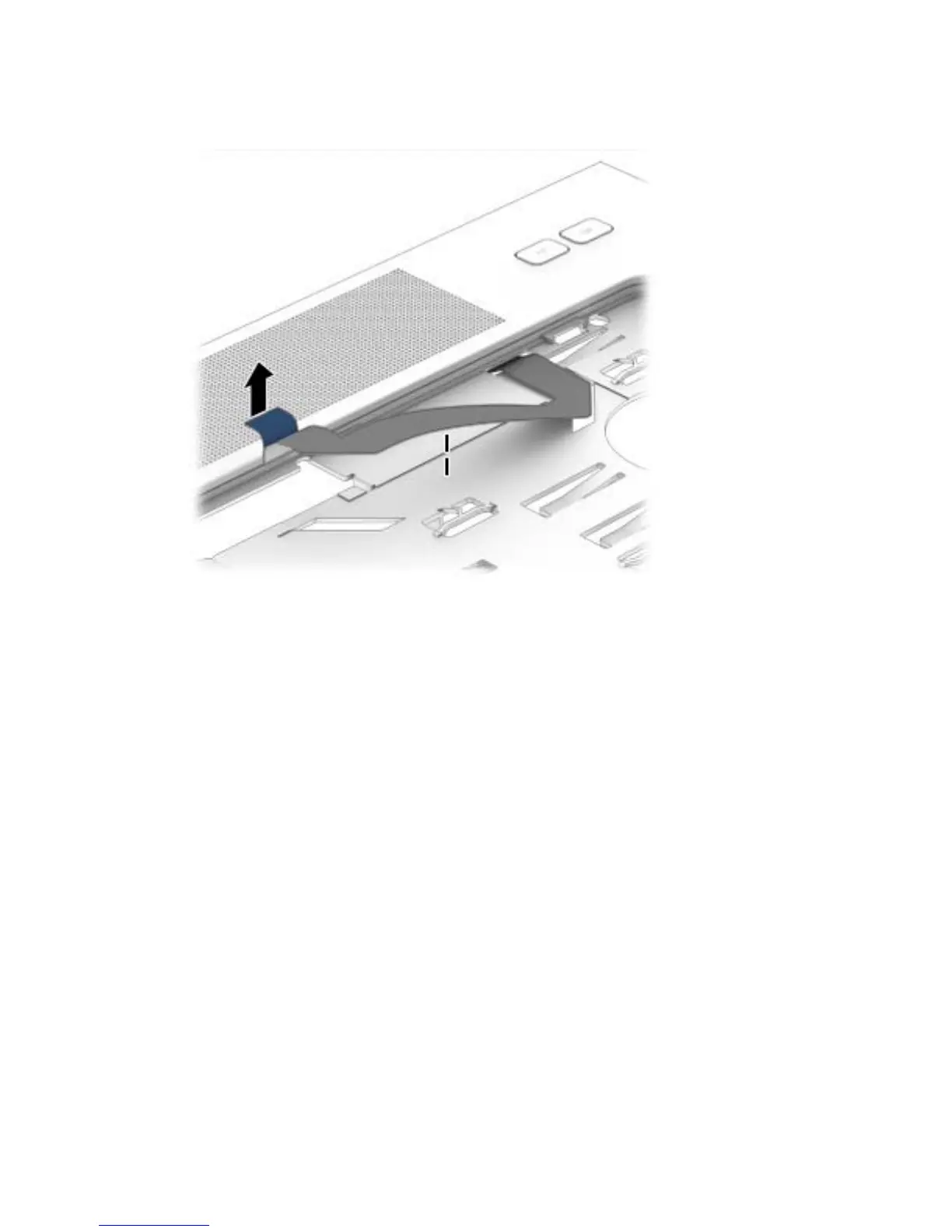

2. Lift the multifunction board cable to disengage the adhesive that secures it to the top of the top
cover.
3. Position the top cover upside down with the front toward you.
4. Remove the Phillips PM2.0x3.0 screw (1) that secures the multifunction board to the top cover.
5. Slide the cable through the slot in top cover (2).
78 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts
