HPE StoreFabric M-Series

28 User Manual

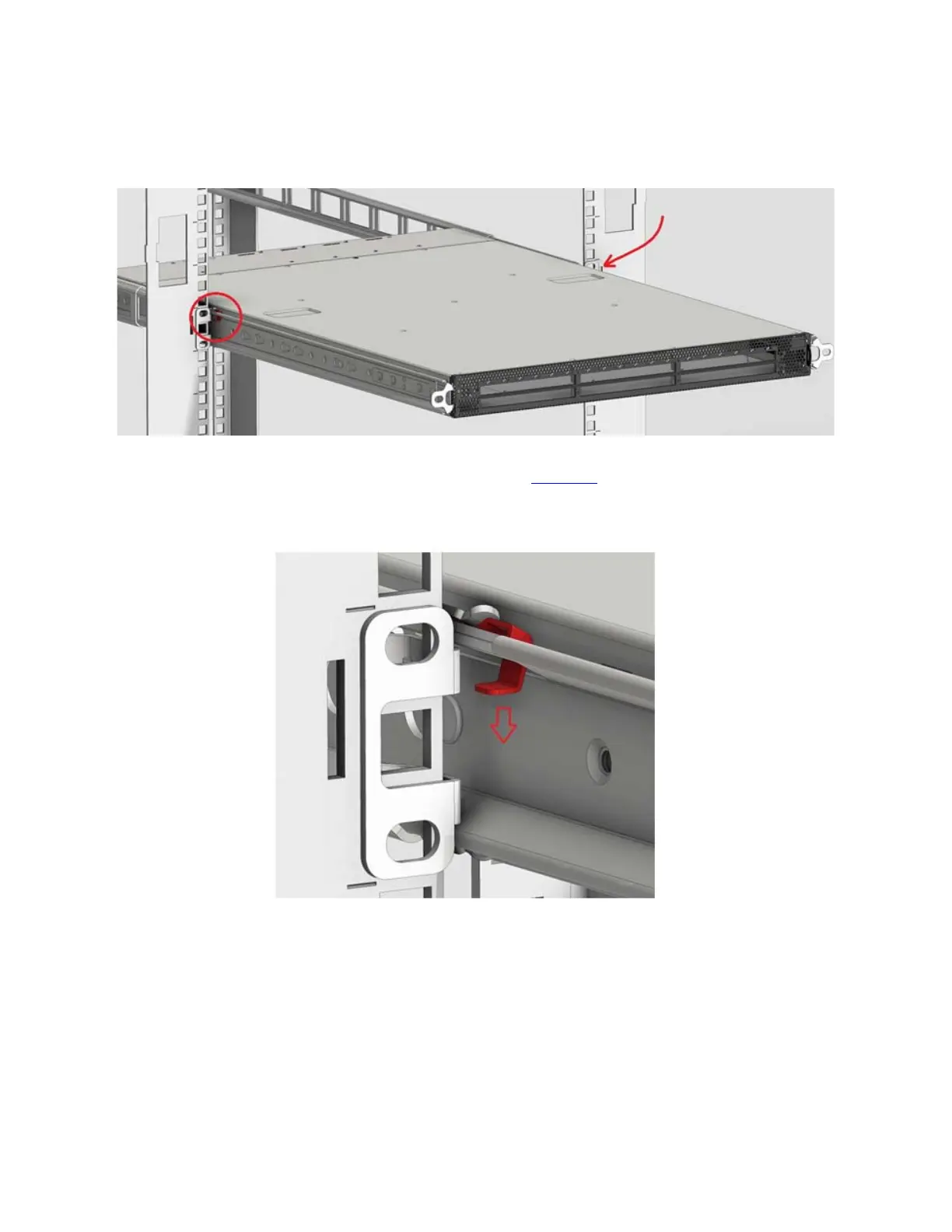

Figure 23: Pulling the Unit Outwards
Step 4. Press on the locking spring (appears in red in Figure 24) on both sides simultaneously, and
continue pulling the unit towards you until it is fully removed.
Figure 24: Locking Mechanism
