• 7/16-inch wrench or socket
• SAN Switch Rack Mount Kit hardware
Installation safety guidelines
Verify that the rack and the area around the rack meet the following requirements:
• Plan a rack space that is a 1U high and provides clearance for the switch power cords to run between
the rack sides and the rails at the front of the 19-inch EIA rack.
• Ground all equipment in the rack through a reliable branch circuit connection and maintain ground at
all times. Do not rely on a secondary connection to a branch circuit, such as a power strip.
• Ensure that airflow and temperature requirements are met on an ongoing basis.
• Secure the rack to ensure stability in case of unexpected movement.
Rack mount installation
To install the switch in a rack using the Rack Mount Kit:
1. Place the switch on a flat surface and attach each inner rail to the switch using three flat-head
screws.

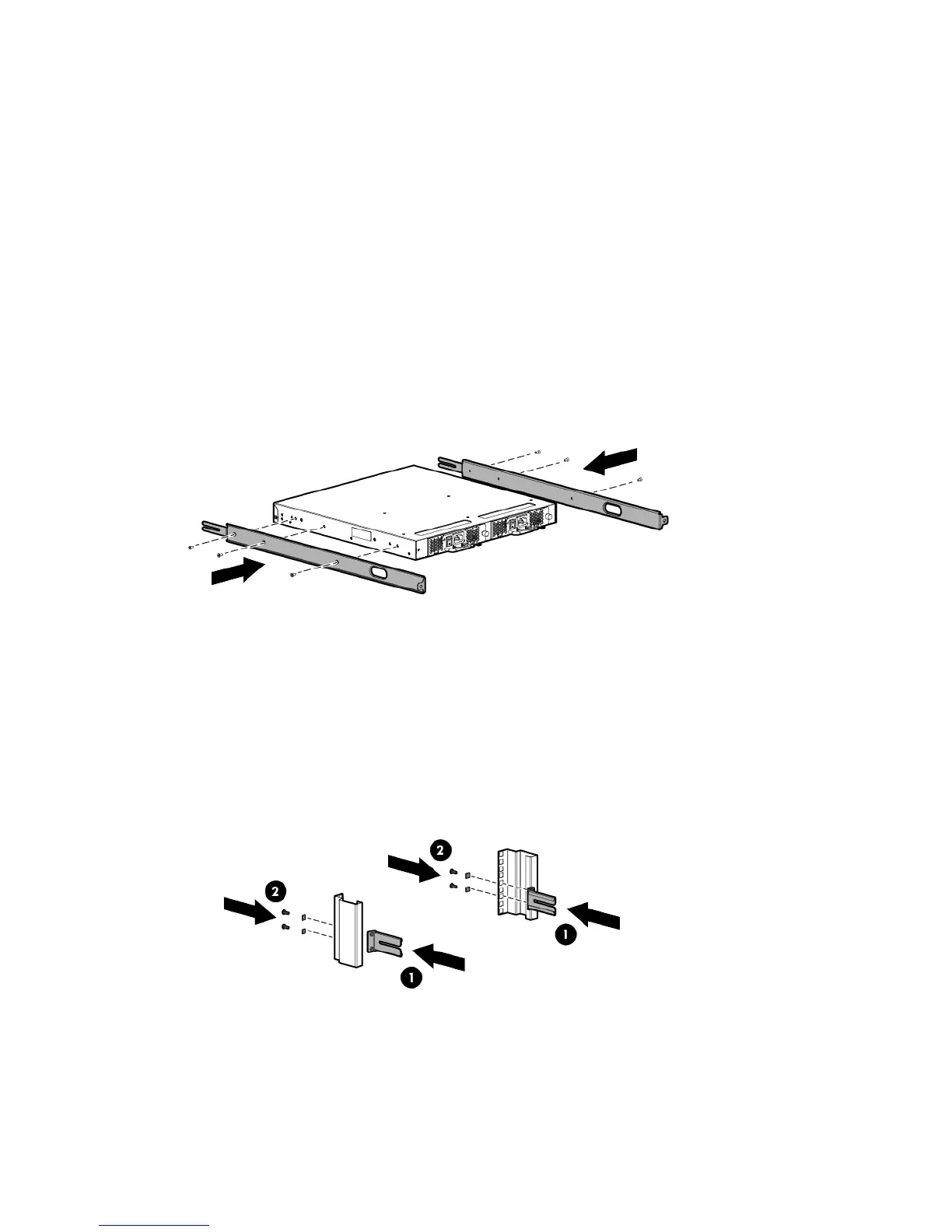

Figure 6: Attaching the inner rails to the switch
2. Choose a rack mounting location that provides clearance for the switch power cords to run between
the rack sides and the rails at the front of the rack.
3. Attach each rear mounting bracket to a rear rack upright column using two Phillips screws and
adapter washers.
Figure 7: Installing the rear mounting brackets
4. Attach each outer rail.
12 Setup and install
