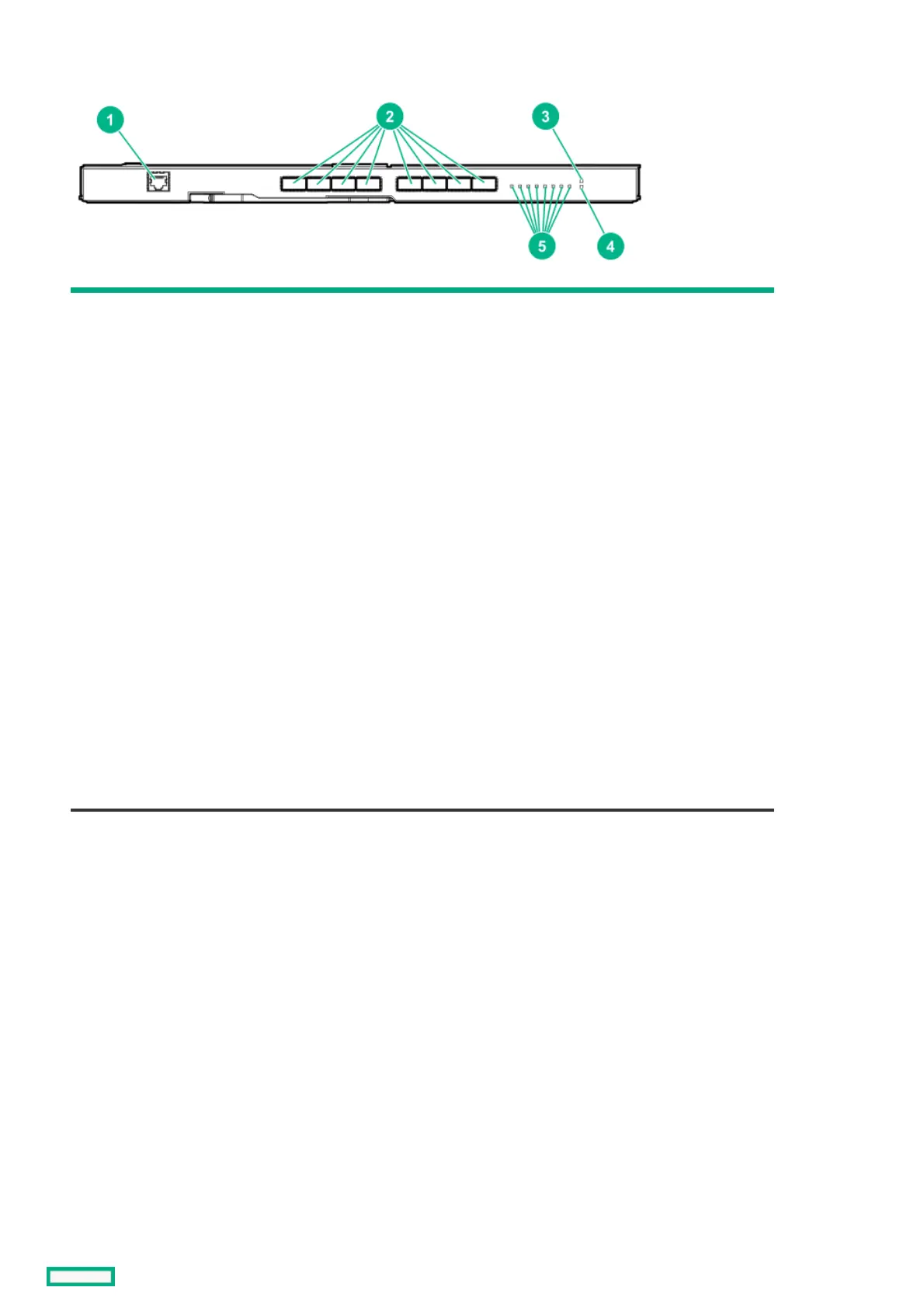

Mellanox SH2200 Switch Module for HPE Synergy LEDs and componentsMellanox SH2200 Switch Module for HPE Synergy LEDs and components
ItemItem DescriptionDescription
11 Serial portSerial port
22 QSFP+ uplink ports (8)QSFP+ uplink ports (8)
33 UID LEDUID LED
Solid blue = Activated
Flashing blue = Firmware upgrade in progress.
Off = Deactivated
44 Health LEDHealth LED
Off = No power present
Solid green = Normal
Flashing amber = Fault
Solid red = CANMIC boot failure
55 QSFP+ LEDsQSFP+ LEDs
Off = Link is down
Solid green = Link is active
Flashing green = Data activity is proportional to data
transfer
Flashing orange = Link error
