Removing and replacing hot-plug fansRemoving and replacing hot-plug fans

All 10 fans must be populated at all times.

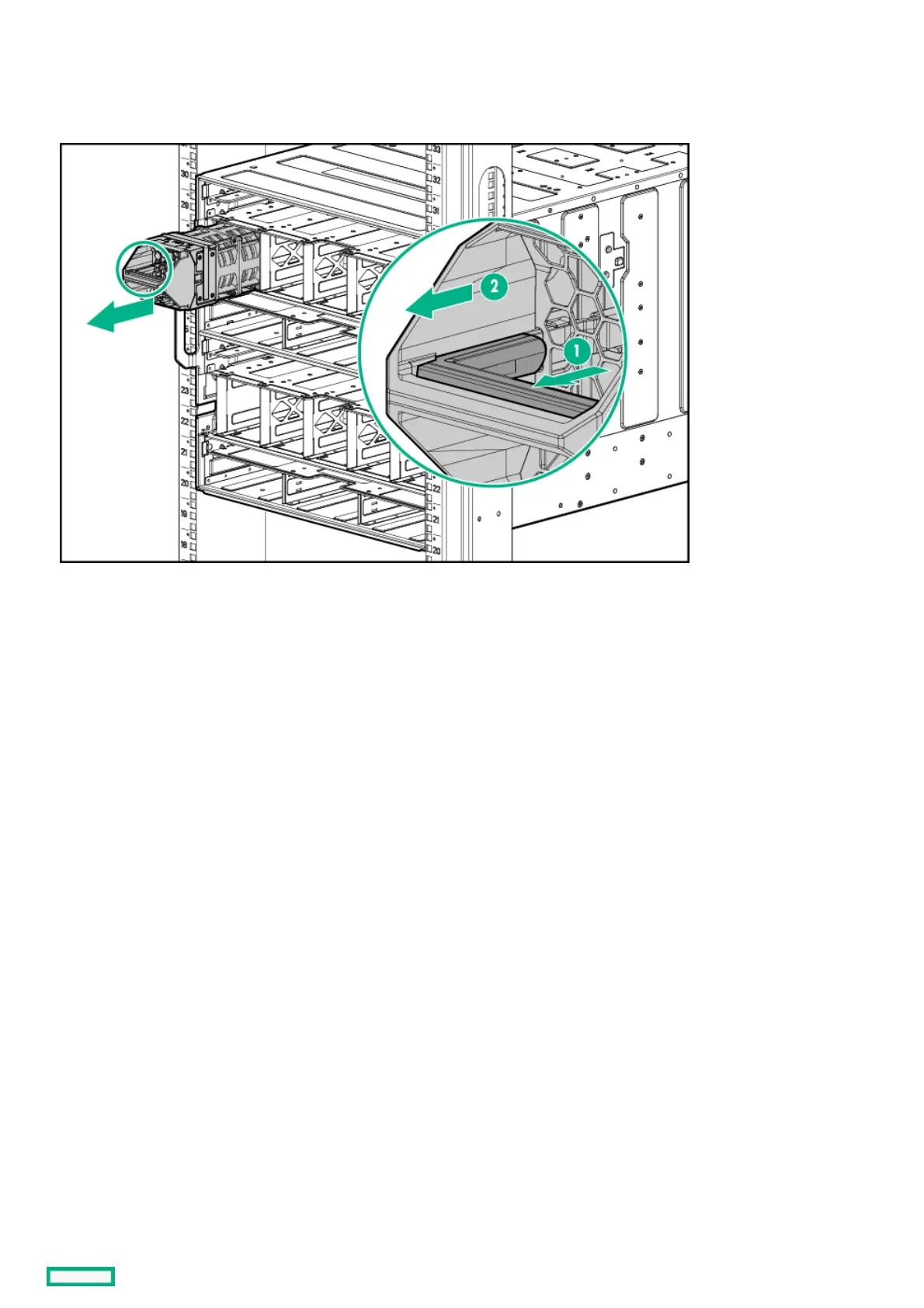

Squeeze the handle, and then pull the fan from the frame.

To replace the component, reverse the removal procedure.

Removing and replacing hot-plug fans 64
