Removing and replacing a frame lift handleRemoving and replacing a frame lift handle
ProcedureProcedure

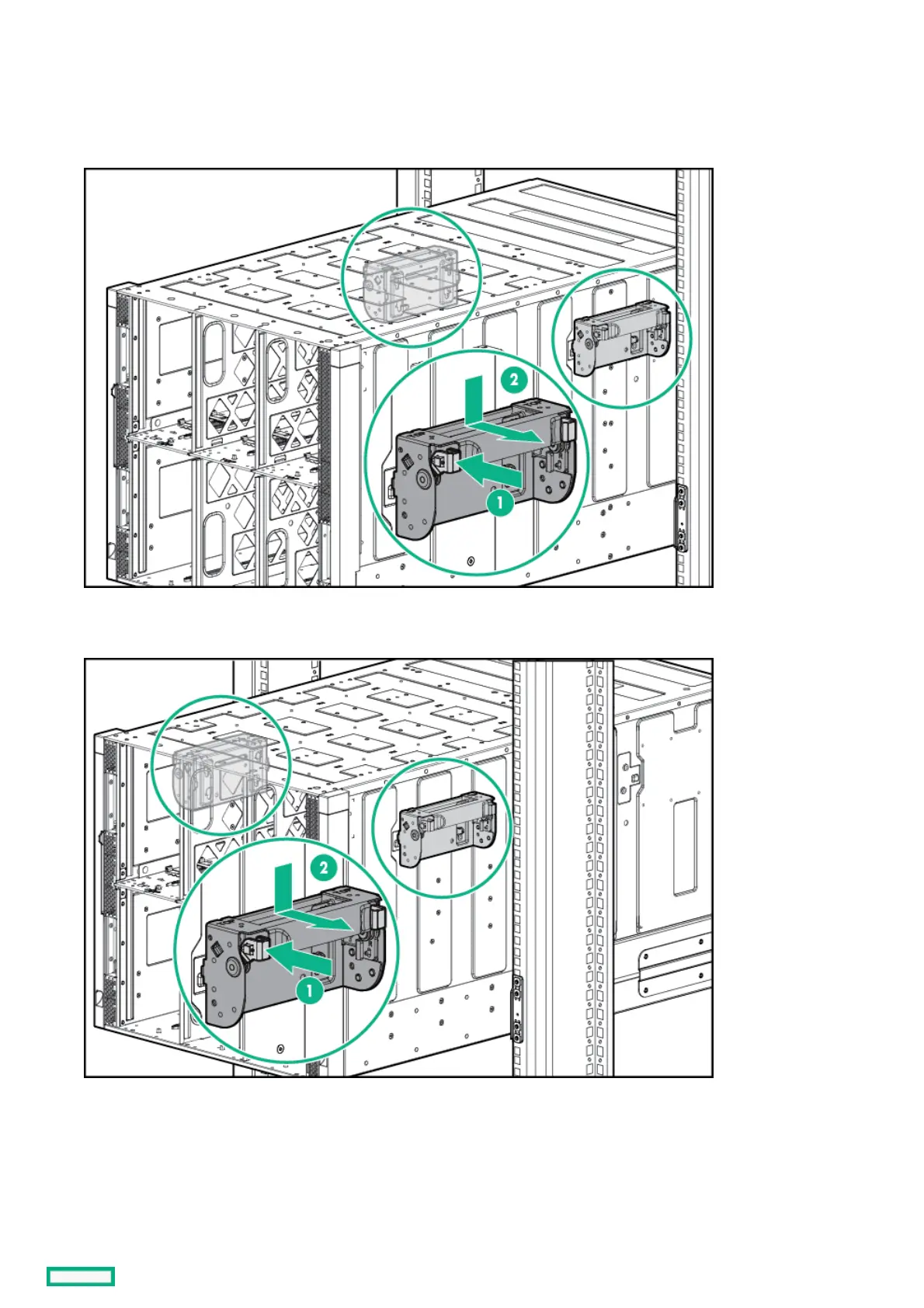

1. Slide the frame into the rack until the rear lift handles are close to the rack. While still supporting the frame with the front lift
handles, remove the rear lift handles from each side of the frame. Then, slide the frame halfway into the rack.
2. Slide the frame into the rack until the front lift handles are close to the rack. Remove the front lift handles from each side of the
frame, and then slide the frame fully into the rack.
To replace the component, reverse the removal procedure.
