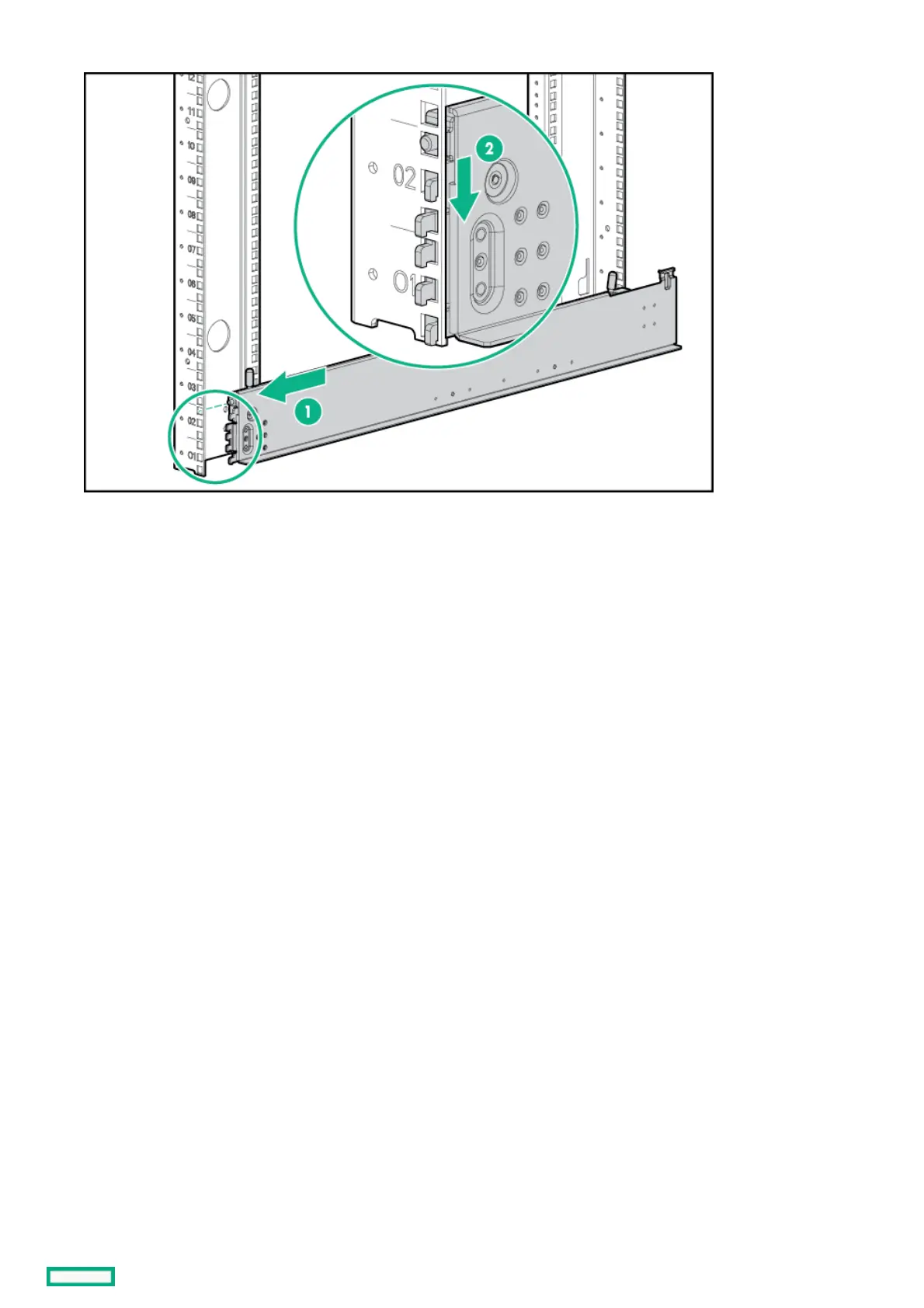

7. Insert the front rail tabs into the rack front column, and then push the tabs down into place.

8. Repeat the procedure for the right rack rail.

Replacing the rack rails 81
