Chapter 3 Machenical Installation
• After opening the package, if damage or incompleteness is found, please do not install it and
contact our distributor or us for solutions.
• When conveying the inverter, please employ suitable tools according to its weight. Please avoid
scratch to the product. Be careful: Rollover and drop may cause hurt.
• Avoid scaps of the drill slip into the inverter during installation.
•
For inverter with more than 2 year’s storage, please use regulator to power it slowly.

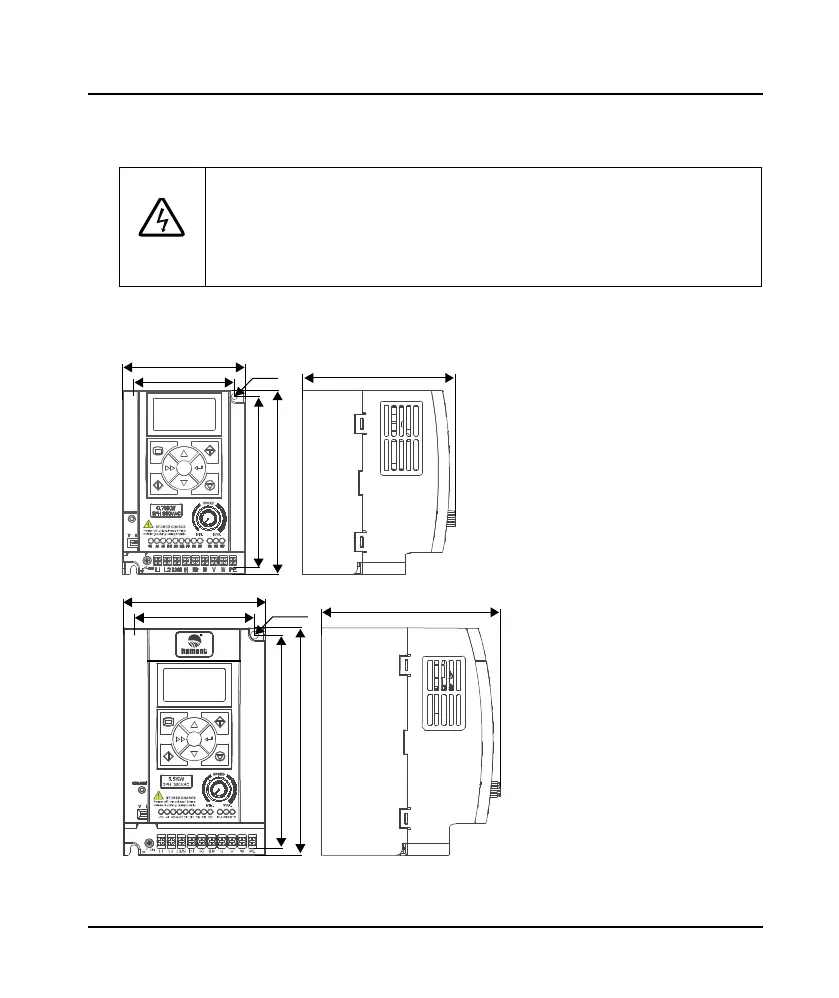

3.1 Dimension and Weight
Size A:
Dimension:
100 × 150 × 125 mm
Mounting dimension:
82 × 140 mm
Mounting aperture:
5 mm
G.W.:
1.5 kg
Size B:
Dimension:
116 × 185 × 145 mm
Mounting dimension:
98 × 174 mm
Mounting aperture:
6.5 mm
G.W.:
2.7 kg
Danger
82
100
2-Ø5
140
150
125
98
116
2-
Ø6.5
174
185
145
