Chapter 5 Technical Data Shenzhen Hpmont Technology Co., Ltd.
-20- HD09 Series User Manual V1.1

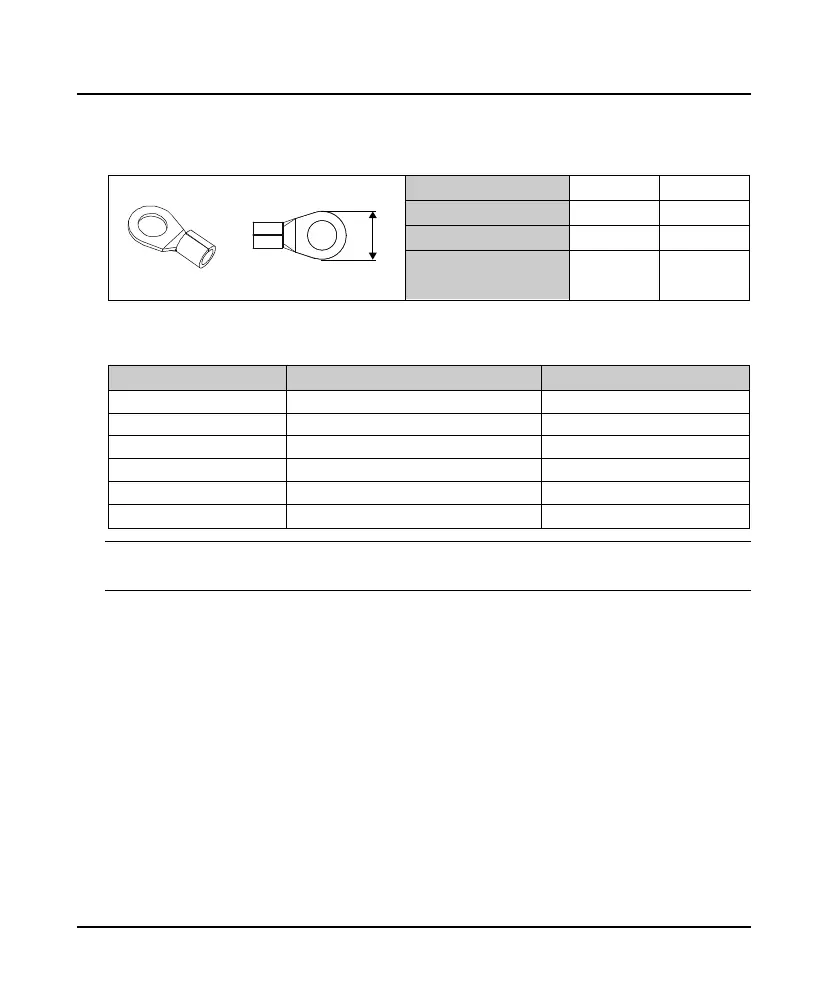

5.1.2 Power Terminal Lug
The wiring lugs of the power terminals (round bare terminals) can be selected according to the
terminal wiring specifications, screw size, and the maximum outside diameter of the wiring lugs.
Size Size A Size B
Screw size M3 M3.5
Tightening torque (N. M) 0.6 - 0.8 0.8 - 1.2
Max. outer diameter of lug
d (mm)
6.1 7
5.2 Braking Resistor
Model Resistance Value (Ω) Resistance Power (W)
HD09-4T0P4G 300 - 400 80
HD09-4T0P7G 250 - 350 100
HD09-4T1P5G 200 - 300 200
HD09-4T2P2G 150 - 250 250
HD09-4T4P0G 100 - 150 300
HD09-4T5P5G 80 - 100 500
Note:
Braking unit is built in three-phase model type exclusively.
d
