TP801/TP805/TP806 User Manual
www.hprt.com 25

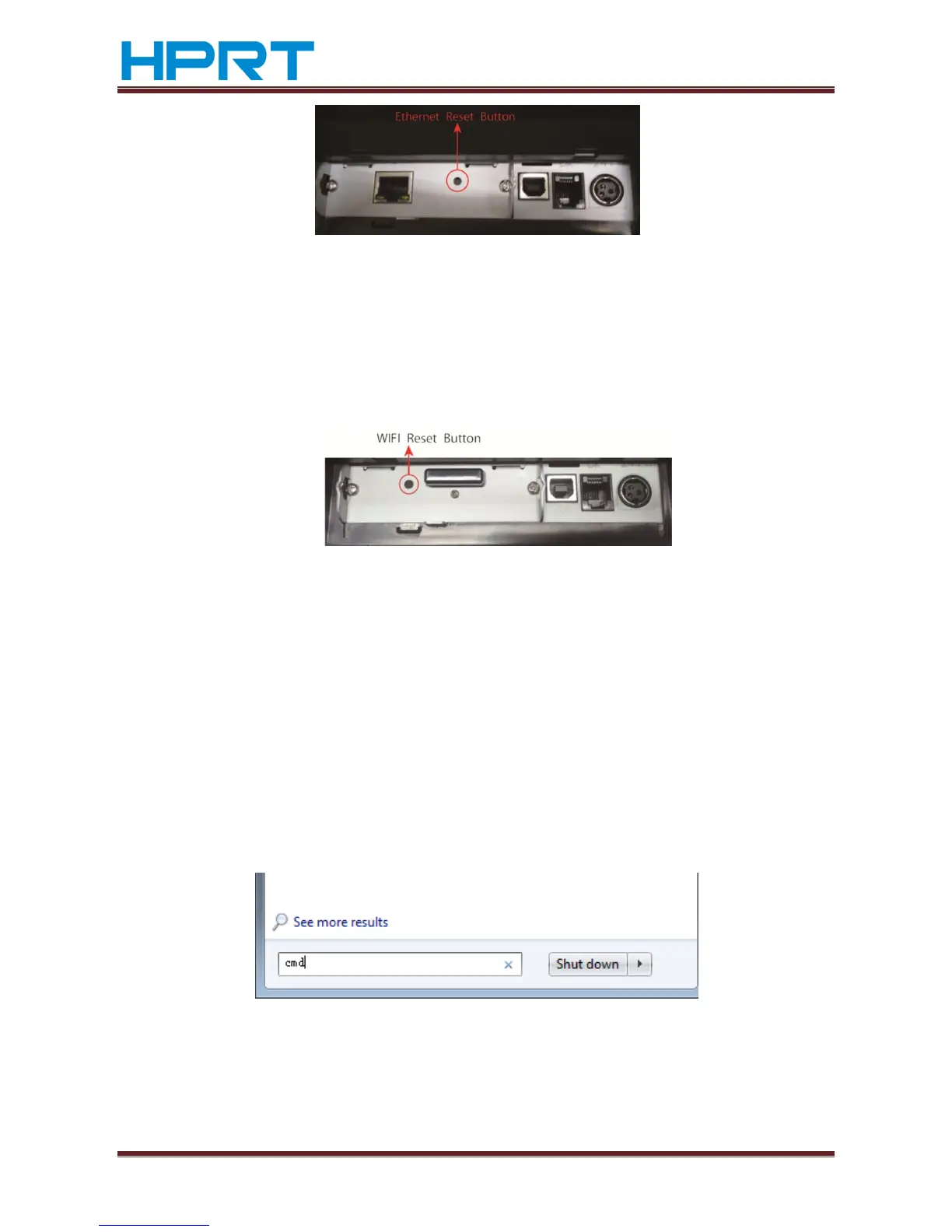

Wi-Fi card parameter checking:
Press the button on the interface card round hole when the printer is power on， he
printer will print software edition and the TCP/IP setting information of the interface
card.
Wi-Fi card parameter resetting:
Press the button on the communication card round hole then power on. he
parameter on the communication card is renew to the original situation.
4.9.4 Setting of Ethernet IP
1) Ethernet IP can be set through Web page, the operating steps are followed：
2) Connect the printer to computer, please refer to the USB, Serial interface and
Parallel User Manual 4.9.1.
3) Connect Ethernet to the printer, please refer to the Ethernet driver installation in
User Manual 4.9.2.
4) Print self- test page after power on. You can find the IP information in the self-test
page IP address line. IP address: 192.168.0.31 //indicates the IP address is
192.168.0.31
5) Click Start-Operate in the computer and key in “cmd” in the input box then click
Sure, see the following figure:
6) Key in ping 192.168.0.31 after “Administrator>”, see the following figure:
