5.4 Cash Drawer interface signal
1)
Electrical characteristics
 Driving voltage：DC 24 V
 Driving current：maximum 0.8 A ( In 510 ms)
 Drawer check signal：“L” = 0～0.5 V “H” = 3～5 V
2)
Cash Drawer interface sing RJ-11 connector

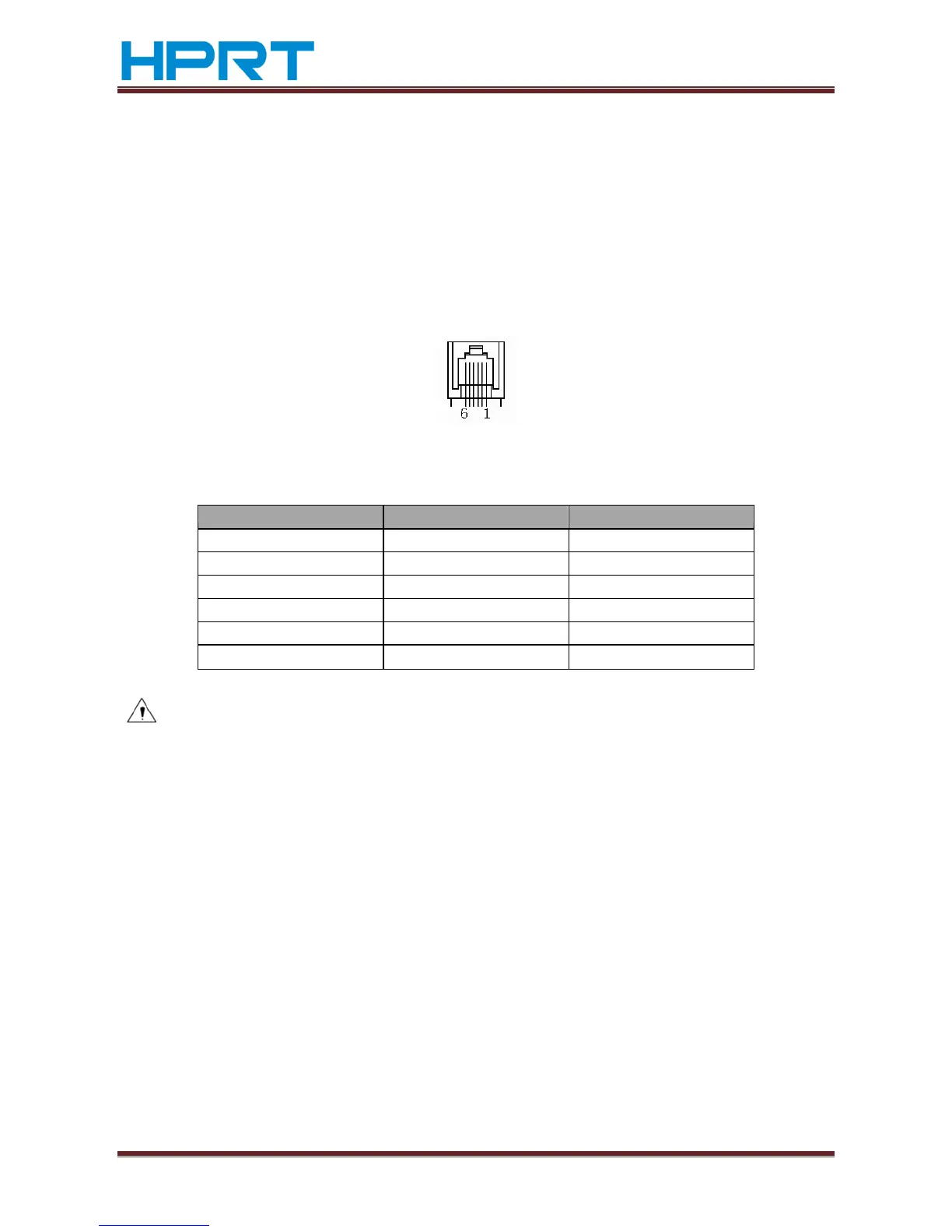

Figure 5.4.1
 Interface signal definition
Pin No.
Signal
Function
1
FG
Frame Ground
2
DRAWER 1
Drawer kick-out drive signal 1
3
DRSW
Drawer open/close signal
4
VDR
Drawer driving source
5
DRAWER 2
Drawer kick-out drive signal 2
6
GND
GND
Note：
 Strictly prohibit to hot plug the plug.
 When arranging the line of communication, you have to avoid paralleling with the
strong current.
 you have to use the shielded communication line.
5.5 Serial interface and Ethernet interface
Printer TP 805 serial interface is compatible with RS-232 standard, with 9 pin (D hole
type) socket.
