HPRT TP806 User Manual

TP801/TP805/TP806 User Manual
www.hprt.com 41

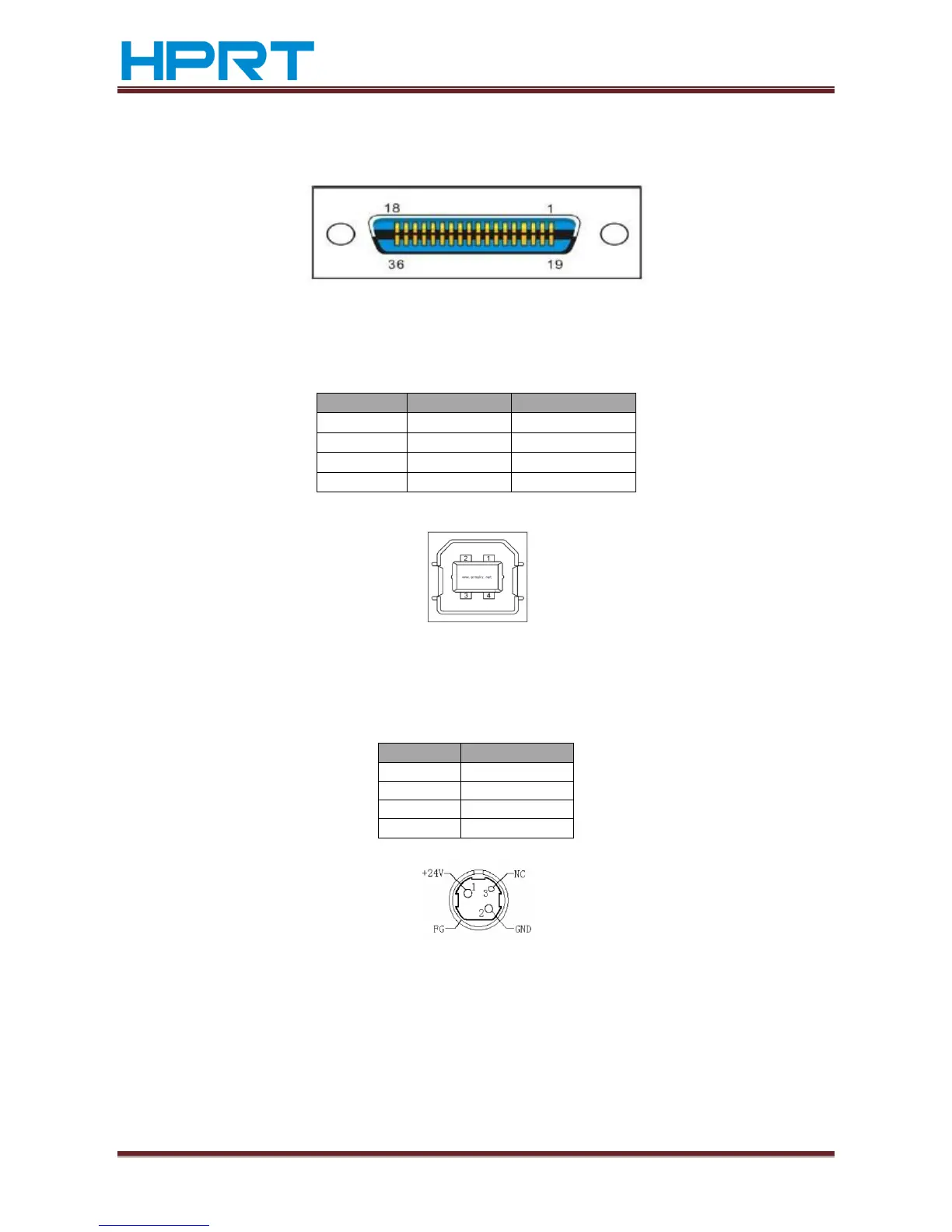

Note：H indicates that signal comes from Host computer, P indicates that signal
comes from Printer
Figure 5.1.1
5.2 Serial interface
Pin definition
PIN No.
Signal name
Classic wire color
1
VBUS
Red
2
D-
White
3
D+
Green
4
GND
Black
Figure 5.2.1
5.3 Power Supply interface definition
1) Pin definition
Figure 5.3.1
2) Interface type
Printer end-Unetop DC-002 or similar products, user end-Unetop DC-002 or similar
products
PIN No.
Signal Name
1
+24V
2
GND
3
N.C
SHELL
F.G
