Operation
The HTC 650 contains a number of functions that are
important to know prior to operation. Read carefully
through the functions of the various systems to ensure
you are fully familiar with them, allowing you to utilize
the grinder optimally.
Forward position: Used when transporting etc. when
the grinder takes up substantially less space.
Up position: Is ideal when operating via the radio control
unit. Run the mains cable and if necessary the extrac-
tor hose through the handle in this case. This position
also applies when the machine is tilted backwards when
changing grinding tools.
Back position: Always use when operating the grinder
manually but can also be used when operating via radio
control.

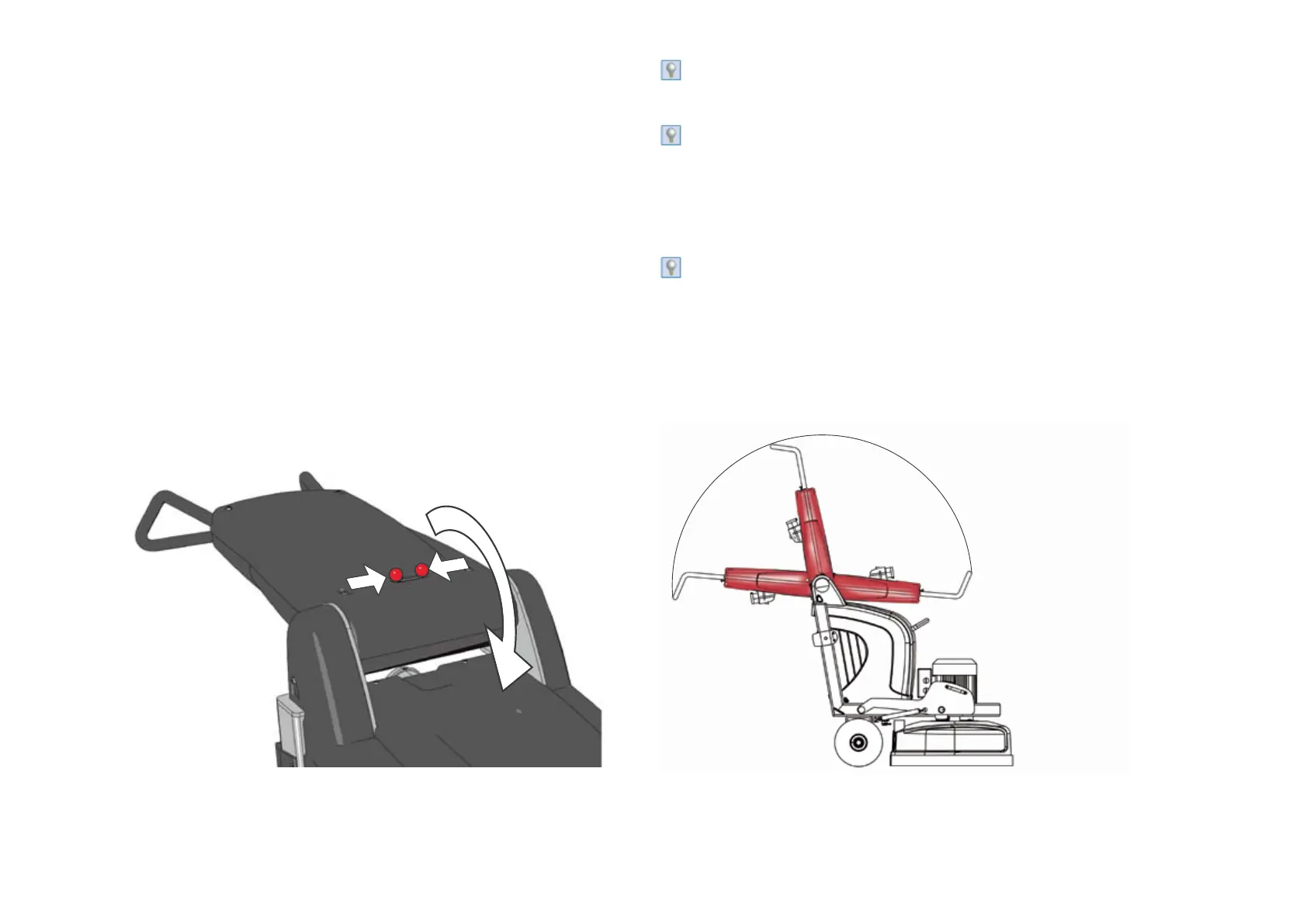

Picture 2. Depending on the type of work task a suitable position can
be set using the HTC 650’s adjustable handle.
Handle setting
Use the adjustable handle on the HTC 650 to set a sui-
table working height. A handle locking
mechanism is located on both the upper (see Picture 1)
and lower side of the handle cover. The handle can be
folded in several different positions (see Picture 2).
Picture 1. Release the handle by moving the two round safety grips
against each other. The handle now drops to the required xed
position. Release the safety grips again to lock.
Back position
Up position
Forward position
