18
Tools - Access to Tools
The grinder must be tilted backwards in order to mount
and change tools.
Raise the handle to upright position and set the weights
furthest back, see Picture 1.
To get a better effect when tilting the grinder, the operator
can put one foot against a weight and slowly tilt the
grinder until the back weights reach the oor, see Picture
2.
Always disconnect mains voltage from the grinder when
working with the grinding tools. Also remember that the
tools can be extremely hot following grinding work.

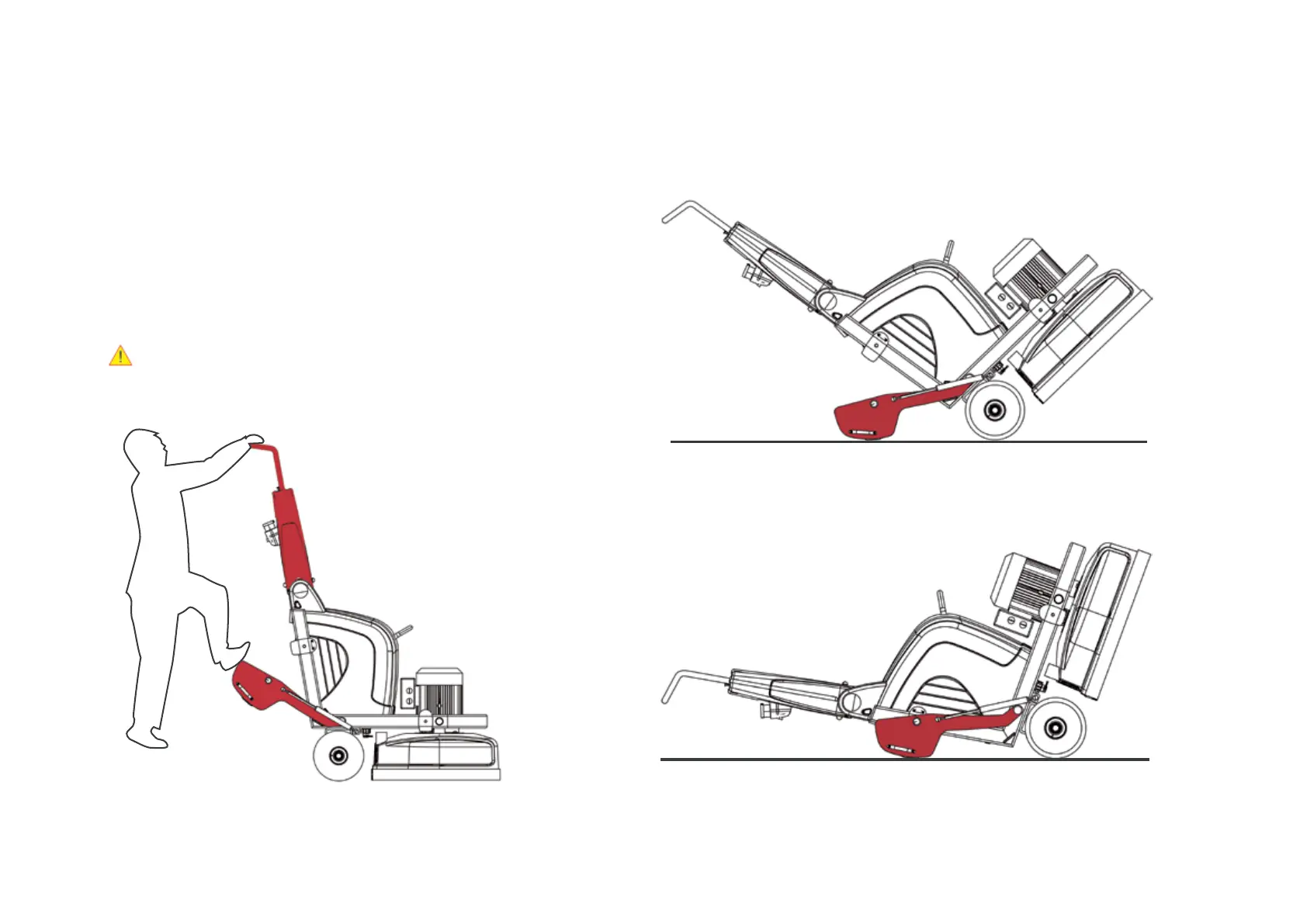

Picture 1. Fold the handle straight up and then set the weights to back
position. Put one foot against the framework and pull the machine
towards you.
Picture 2. Tilt the grinder backwards until the weights reach the oor.
Picture 3. Tilt the grinder back a little more until it is resting in back
position.
