HTC 800 RX Machine description
2.0 11

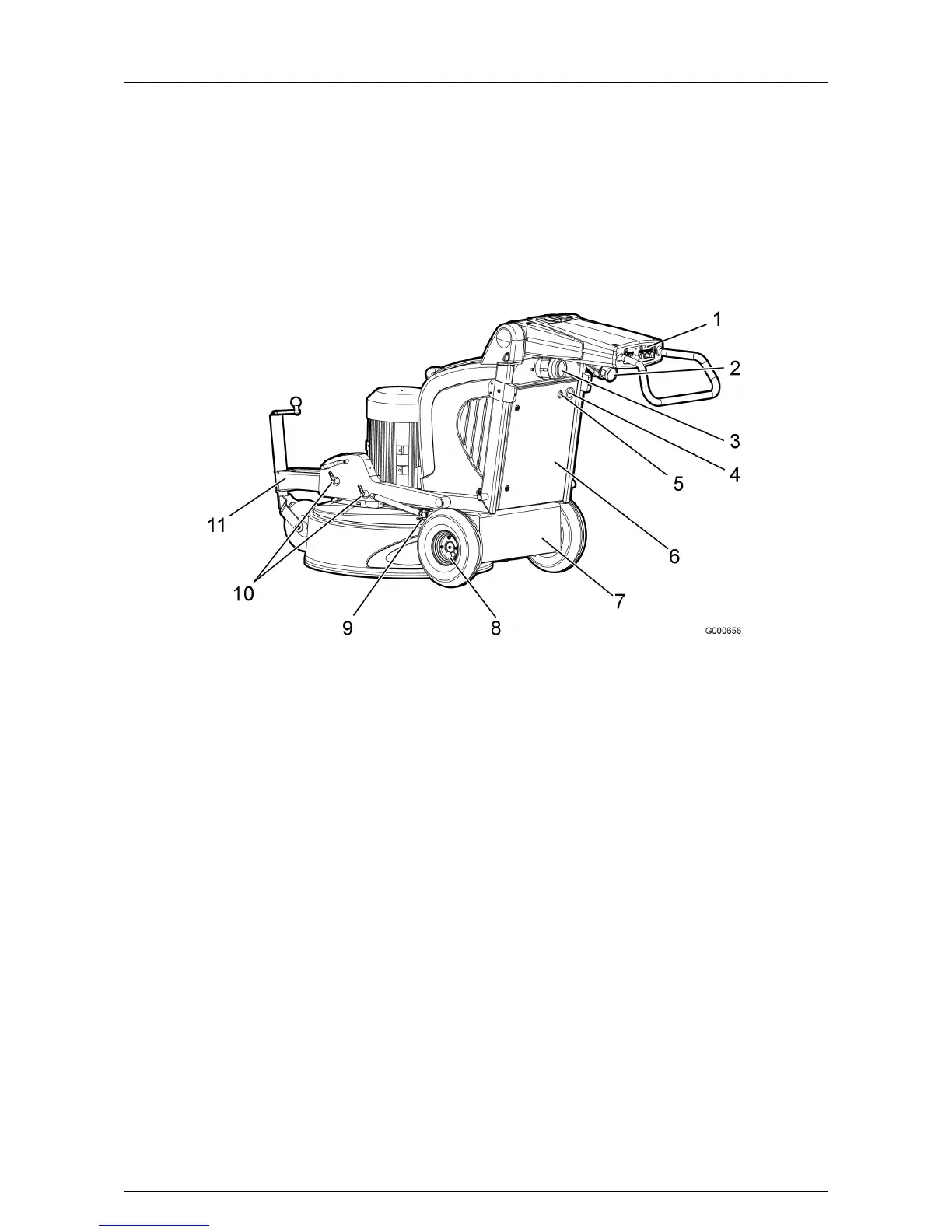

Figure 3-2. The machine's rear
1. Control panel
2. Electrical connection
3. Extraction connection
4. Hour counter
5. Mist-Cooler On/Off
6. Control cabinet
7. Drive motor box
8. Locking pin, Driving
9. Water tap, wet spraying
10. Locking pin, weights (grinding pressure)
11. Support wheel, used during transport
