34
LP-505 REV. 4.29.14
PART 10 – OPERATING SYSTEM INSTRUCTIONS

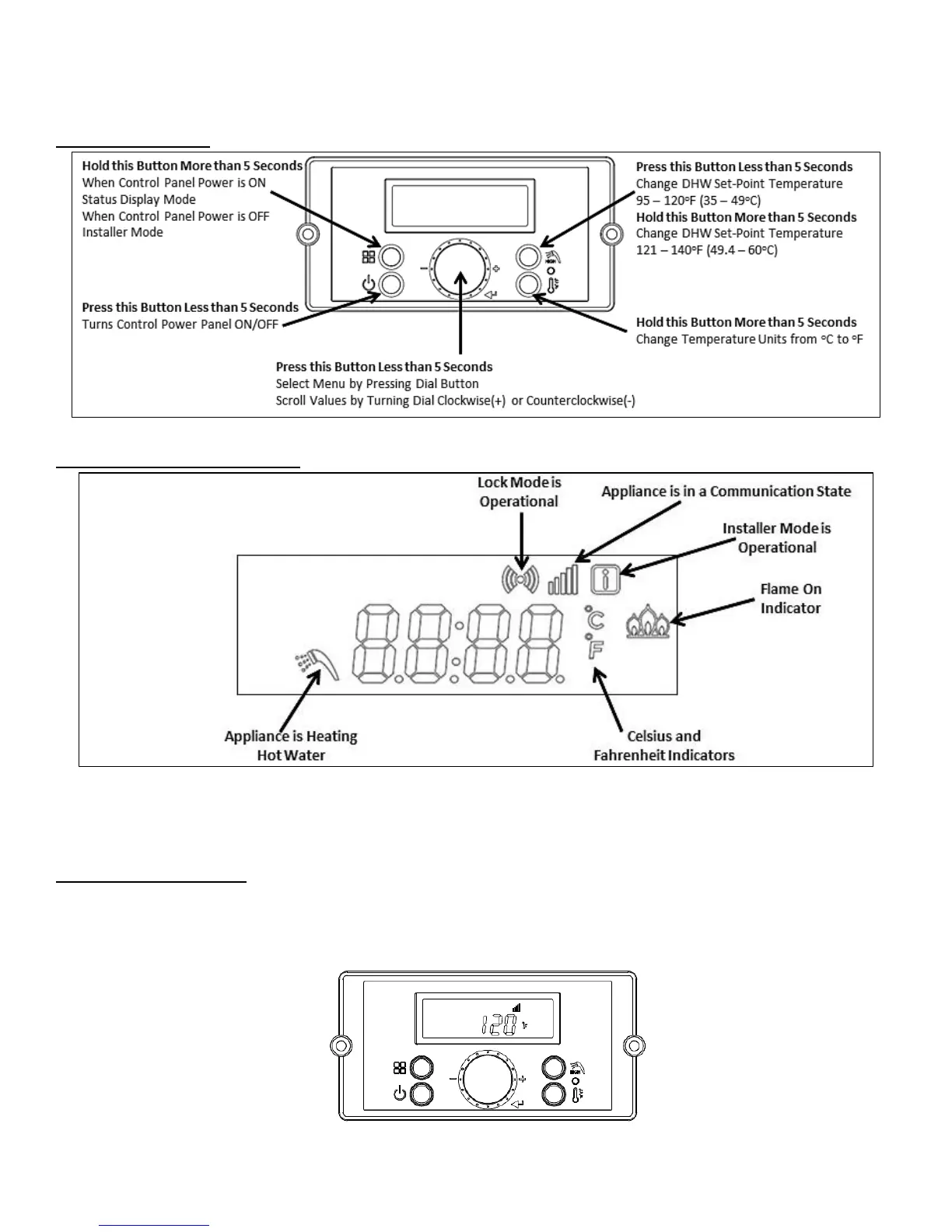

A. CONTROL PANEL
Figure 24 – Water heater Control Panel Detail
B. LCD DISPLAY DESCRIPTIONS
Figure 25 – LCD Display Detail
LCD also features a backlit lamp that will illuminate:
When a user action is detected (a button is pressed)
The display has timed out for approximately 2 minutes
C. START-UP SEQUENCE
After the appliance is powered ON, the LCD display shows a sequence of information. The icons will flash, followed by various
indicators that describe the appliance controller and software versions. It will take the appliance roughly 15 seconds to cycle through
the Start-Up Sequence.
After start-up, the display appears as follows.
Figure 26 – Initial Display Screen
