REPLACEMENT PARTS

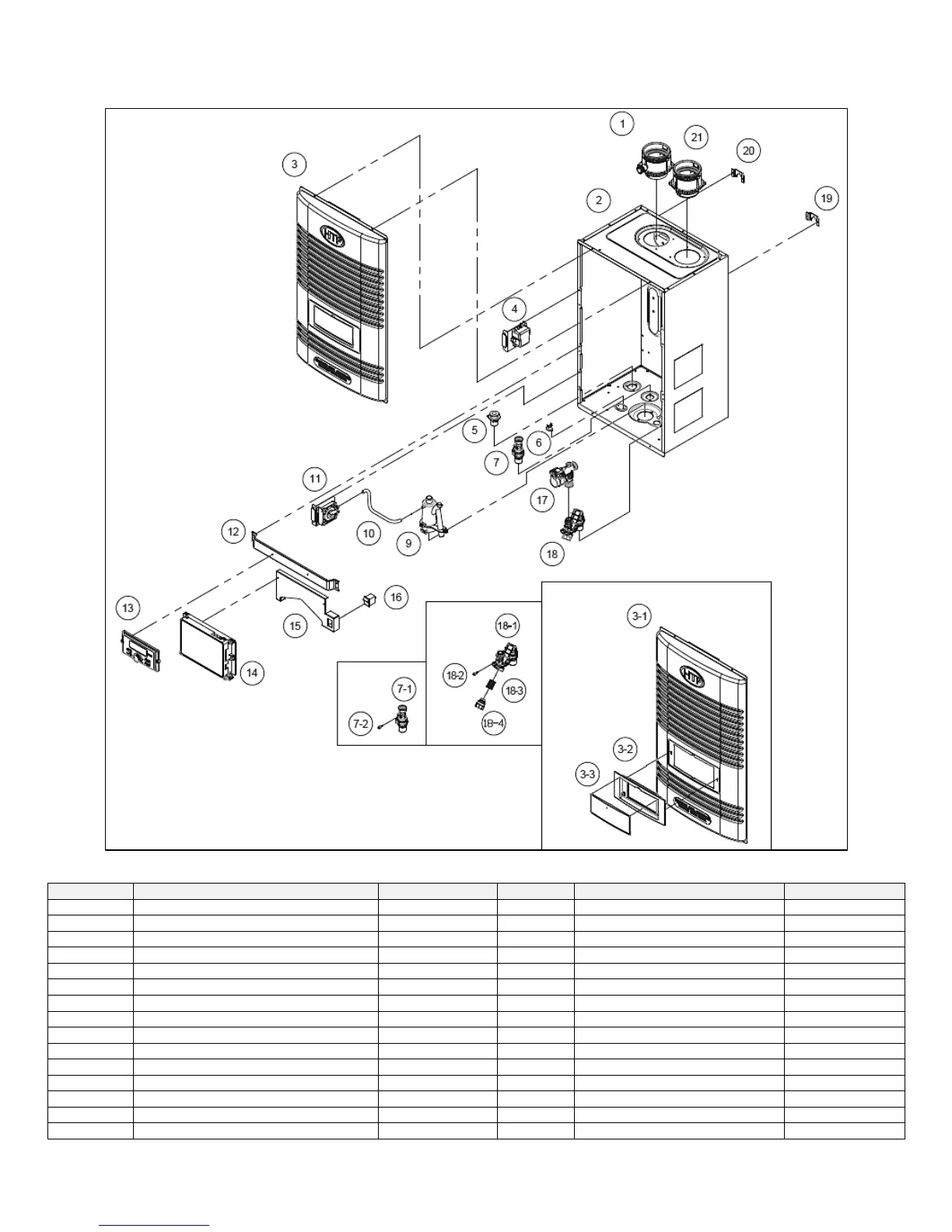

Figure 39 – Cabinet Replacement Parts
NUMBER
DESCRIPTION
PART NUMBER
NUMBER
DESCRIPTION
PART NUMBER
1
EXHAUST ASSY
7850P-021
11
AIR PRESSURE SWITCH
7850P-047
2
CASE
7850P-044
12
DISPLAY BRACKET
7850P-065
3
DOOR ASSY
7850P-025
13
DISPLAY
7850P-057
3-1
FRONT COVER
7850P-062
14
CONTROL
7850P-058
3-2
DISPLAY PANEL BRACKET
7850P-024
15
CONTROL BRACKET
7850P-066
3-3
DISPLAY PANEL
7850P-023
16
ROCKER SWITCH
7850P-059
4
IGNITION TRANSFORMER
7850P-045
17
FLOW CONTROL VALVE
7850P-053
5
GAS INLET NIPPLE
7850P-043
18
WATER INLET VALVE ASSY
7850P-018
6
OVERHEAT SENSOR
7850P-050
18-1
WATER INLET VALVE BODY
7850P-067
7
DHW SUPPLY PIPE ASSY
7850P-020
18-2
WATER INLET SENSOR
7850P-015
7-1
DHW SUPPLY PIPE
7850P-063
18-3
WATER INLET FILTER
7850P-017
7-2
WATER OUTLET SENSOR
7850P-019
18-4
WATER INLET FILTER CAP
7850P-016
8
N/A
N/A
19
CASE BRACKET (LEFT)
7850P-068
9
SIPHON ASSY
7850P-014
20
CASE BRACKET (RIGHT)
7850P-069
10
SIPHON AIR PRESSURE HOSE
7850P-064
21
INTAKE AIR ASSY
7850P-022
Table 26 – Cabinet Replacement Parts
