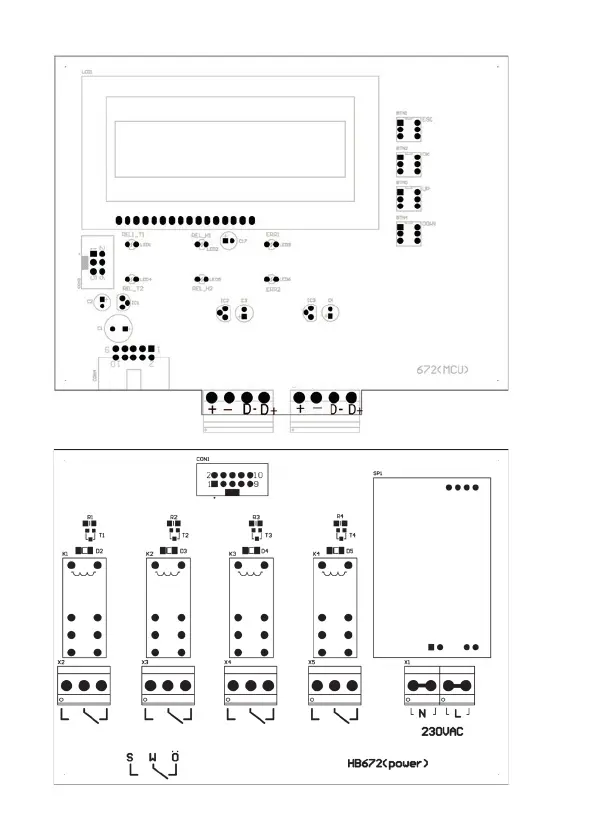

88 | Instructions génerales de montage
+/- = tension d’alimentation
S = version à fermeture
W = version inverseur
O = version à ouverture
T 1 F 1 F 2T 2
Capteur 1 =
capteur interne
Capteur 2 =
capteur extérieure
D-/D+ = câble de données
