Step 3 Power on or off switching planes on the MM910 WebUI.
1. Log in to the MM910 WebUI.
For details, see 6.5 Logging In to the MM910 WebUI.
2. Choose Pem&Fantray.
The Pem&Fantray page is displayed.
3. In the navigation tree on the left of the Pem&Fantray page, choose Power Supply
Management > Power Control.

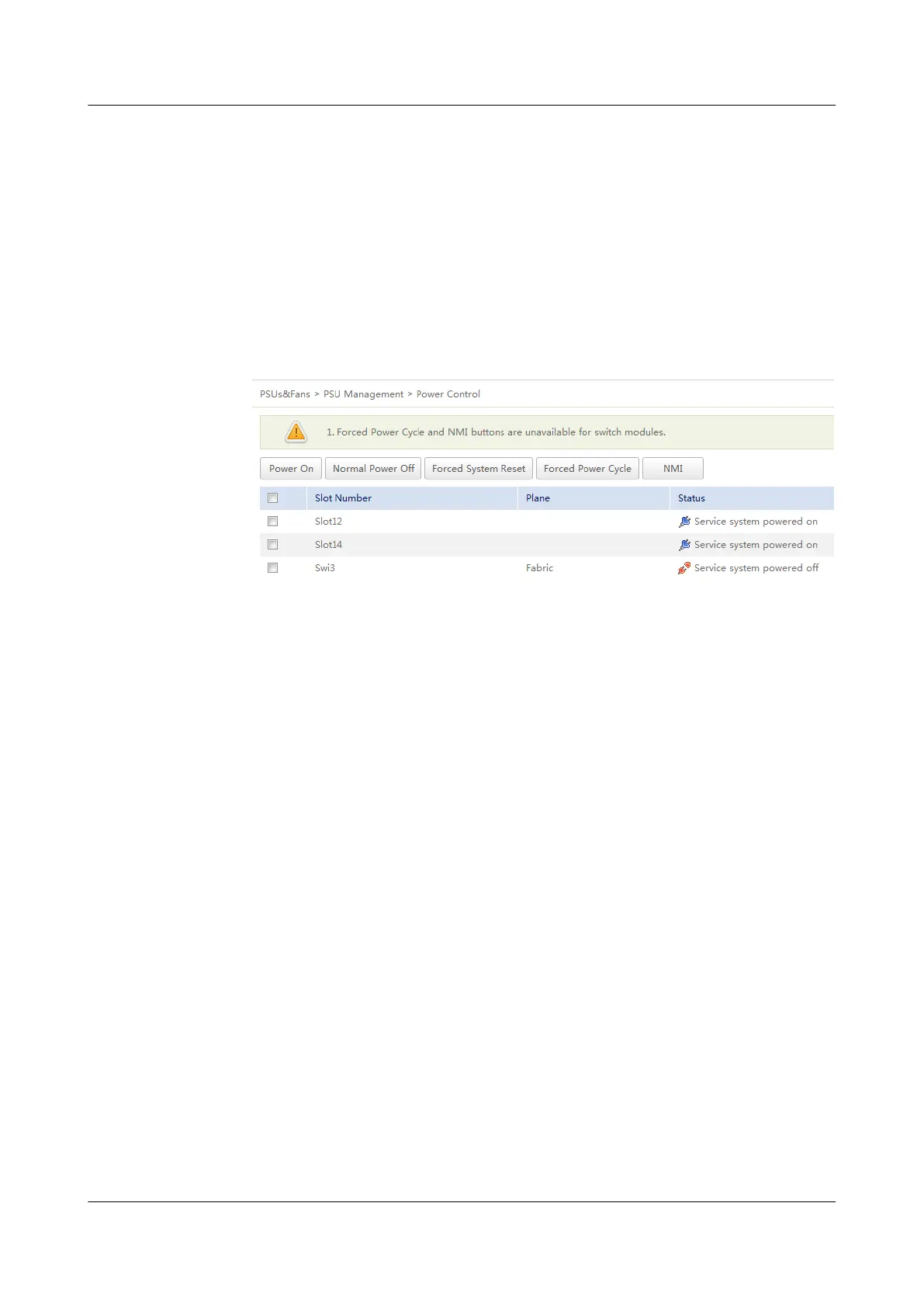

Figure 6-4 Power Control page
4. Power on or off the converged switching plane of a specific switch module.
fabric indicates the converged switching plane.
5. Refresh the page and check the latest power-on and power-off status of the switch
module.
----End
6.5 Logging In to the MM910 WebUI
Scenarios
Log in to the HMM WebUI using a browser.
CX320 Switch Module
User Guide
6 Common Operations
Issue 09 (2019-08-02) Copyright © Huawei Technologies Co., Ltd. 91
