Indicator Status Description
On The DSL connection is established.
Blinking
There are two state:
z Slow-Blinking
The telephone line is not connected or the
DSL connection is not established.
z fast-Blinking
The DSL connection is being activated.
ADSL
Off The HG520b is powered off.
On
The embedded PPPoE and PPPoA
dial-ups of the HG520b are successful, but
there is no data transmission.
Blinking
There are data being transmitted in the
INTERNET interface.
INTERNET
Off
The HG520b is in the bridge mode or the
PPPoE/PPPoA connection is not
established.
1.2.2 Rear Panel

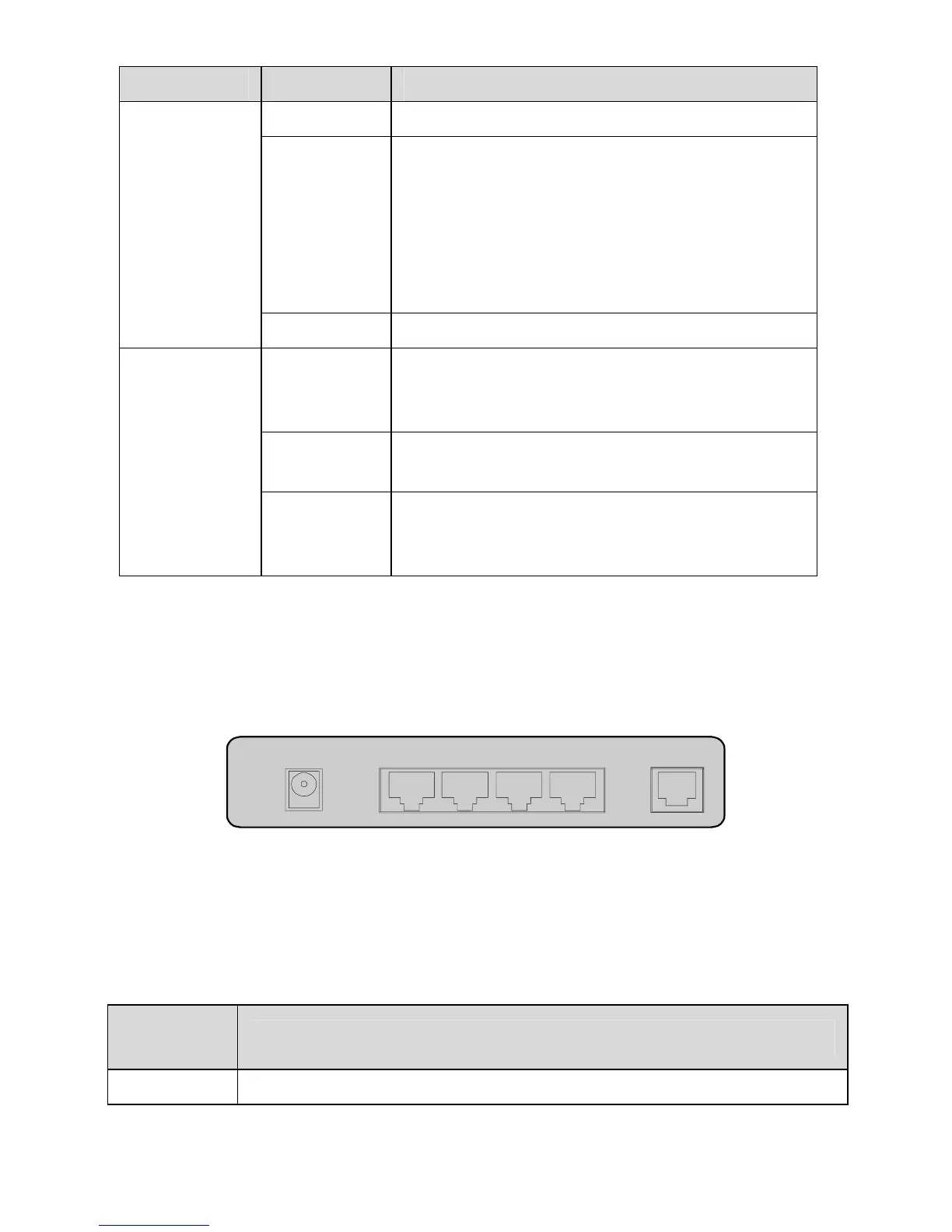

Figure 1-2 shows the rear panel of the HG520b.
POWER LAN4 LAN3 LAN2 LAN1 ADSL
Figure 1-2 Rear panel of the HG520b
Table 1-2 shows interfaces and buttons in the rear panel.
Table 1-2 Interfaces and Buttons in the rear panel
Interface/
Button
Description
POWER To connect to the power adapter.
