Huawei Echolife HG520b

5
Chapter 2 Installation of the HG520b
This chapter introduces the installation when the HG520b is used for
the first time.
2.1 Preparation
Connect your computer with the HG520b through the Ethernet
interfaces. Before installing the HG520b, make sure that your computer
is equipped with the network card
2.2 Connecting the HG520b

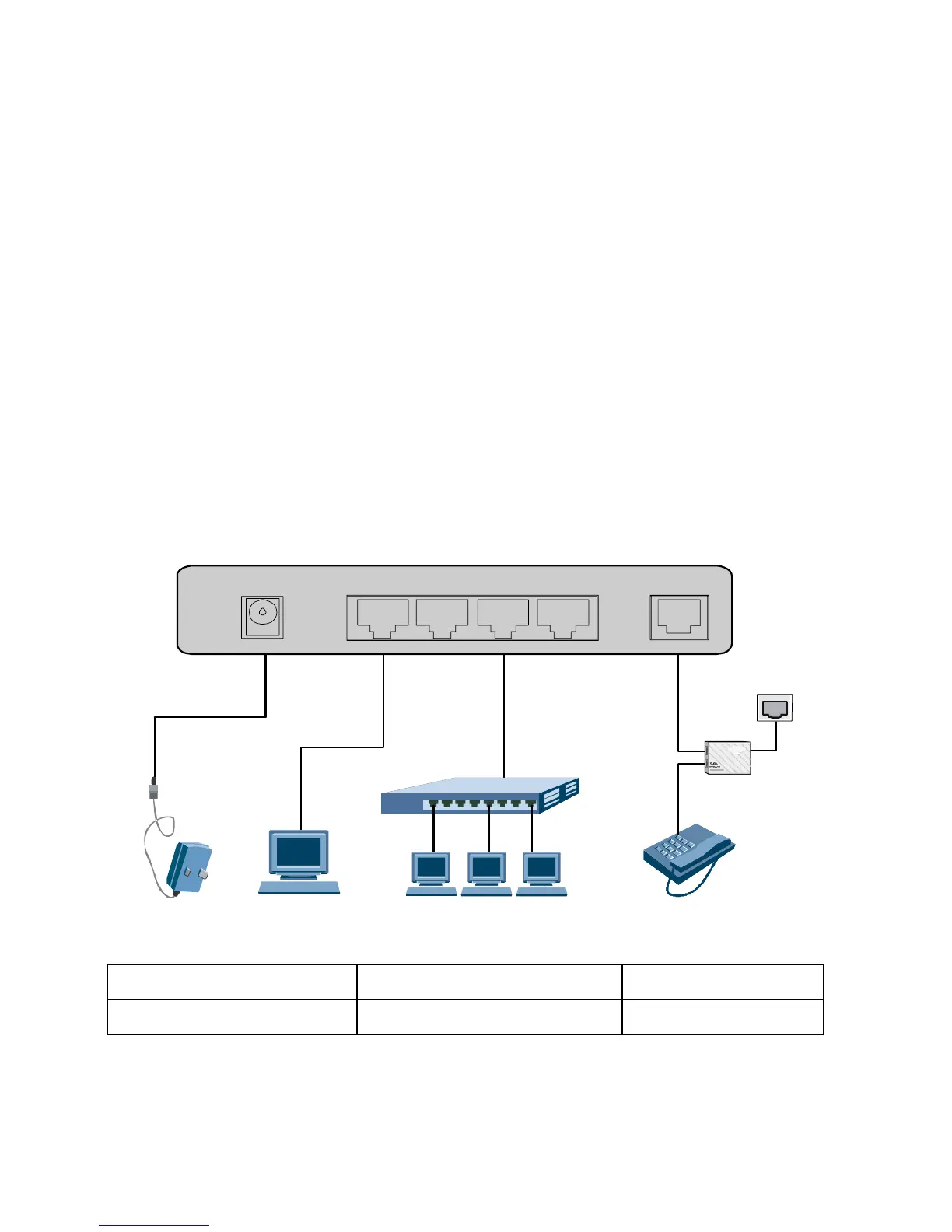

Figure 2-1 shows the connection of the HG520b.
21226
4
5
POWER LAN4 LAN3 LAN2 LAN1 ADSL
2
3
1 Power adaptor 2 Computer 3 Switch
4 Splitter 5 Phone Jack 6 Phone
Figure 2-1 Connection of the HG520b
