Huawei iSitePower-M Quick Guide

24

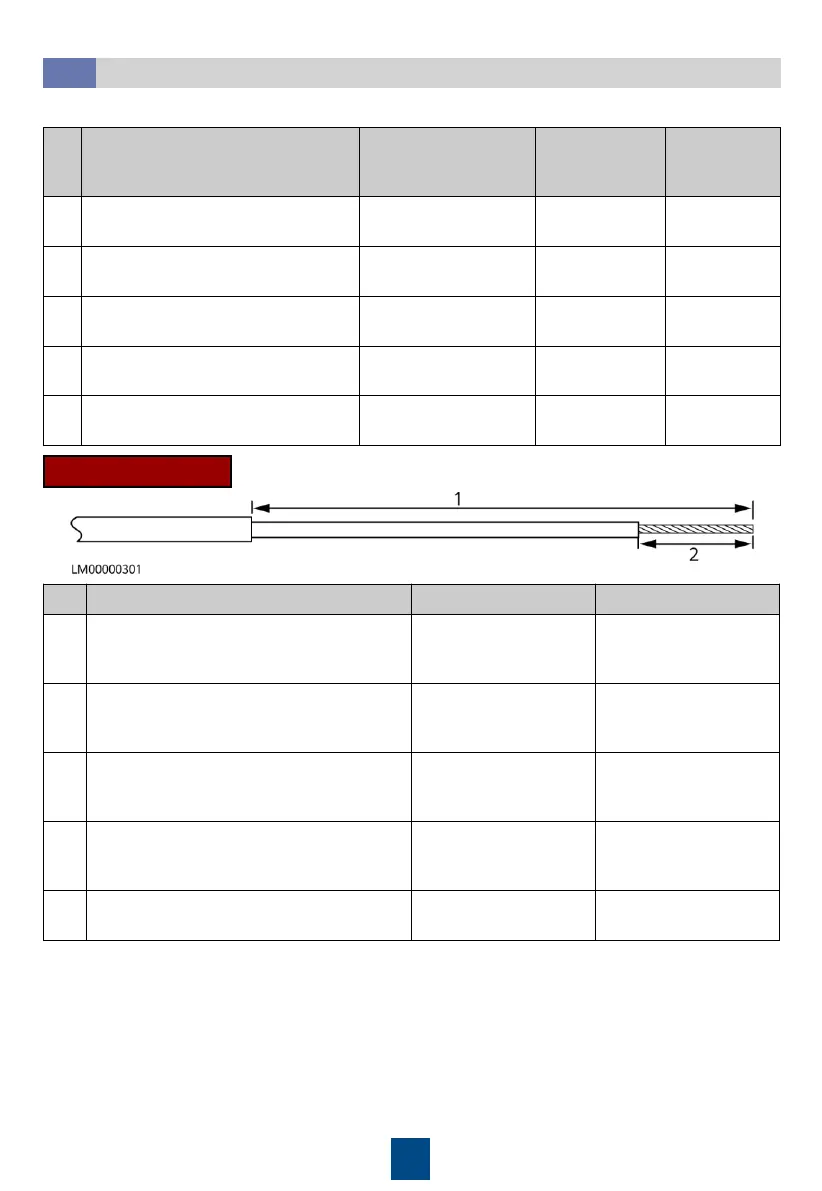

Preparing Cables
7.5
Prepare cables for the parallel box.
No.
Cable
Type
Conductor
Cross
-
Sectional
Area Range
Outer
Diameter
1
AC input power cable from the
mains input to the parallel box
Outdoor three
-core
copper cable (L/N/PE)
25 mm
2
16
–26 mm
2
Cable from the parallel box to the
AC input port of the iSitePower
-M
Outdoor three
-core
copper cable (L/N/PE)
4
–6 mm
2
13.7
–
16.9 mm
3
Cable from the AC output port of
the iSitePower
-
M to the parallel box
Outdoor three
-core
copper cable (L/N/PE)
4
–6 mm
2
13.7
–
16.9 mm
4
AC output power cable from the
parallel box to the load
Outdoor three
-core
copper cable (L/N/PE)
25 mm
2
16
–26 mm
5
Main ground cable of the parallel
box
Outdoor single
-core
copper cable
25 mm
2
8
–11 mm
No.
Cable
1
2
1
AC input power cable from the mains
input to the parallel box
•
L wire: 120 mm
•
N wire: 120 mm
•
PE wire: 140 mm
•
L wire: 16 mm
•
N wire: 14 mm
•
PE wire: 14 mm
2
Cable from the parallel box to the AC
input port of the iSitePower
-M
•
L wire: 410 mm
•
N wire: 340 mm
•
PE wire: 240 mm
•
L wire: 12 mm
•
N wire: 7 mm
•
PE wire: 7 mm
3
Cable from the AC output port of the
iSitePower
-M to the parallel box
•
L wire: 115 mm
•
N wire: 220 mm
•
PE wire: 370 mm
•
L wire: 12 mm
•
N wire: 7 mm
•
PE wire: 7 mm
4
AC output power cable from the parallel
box to the load
•
L wire: 300 mm
•
N wire: 325 mm
•
PE wire: 580 mm
•
L wire: 16 mm
•
N wire: 14 mm
•
PE wire: 14 mm
5
Main ground cable of the parallel box
N/A
14 mm
Stripping Length

Huawei iSitePower-M Specifications

General

Storage Temperature	-40°C to +70°C
Product Name	Huawei iSitePower-M
Type	Power System
Efficiency	≥96%
Output Voltage	-48 V DC
Operating Temperature	-40°C to +55°C
Relative Humidity	5% to 95% (non-condensing)
Altitude	Up to 4000 m
Cooling Method	Forced Air Cooling
Protection Features	Overvoltage, undervoltage, overcurrent, short circuit, overtemperature
Certifications	CE, UL, TUV
Input Voltage Range	85 V - 300 V AC
