Huawei iSitePower-M Quick Guide

5

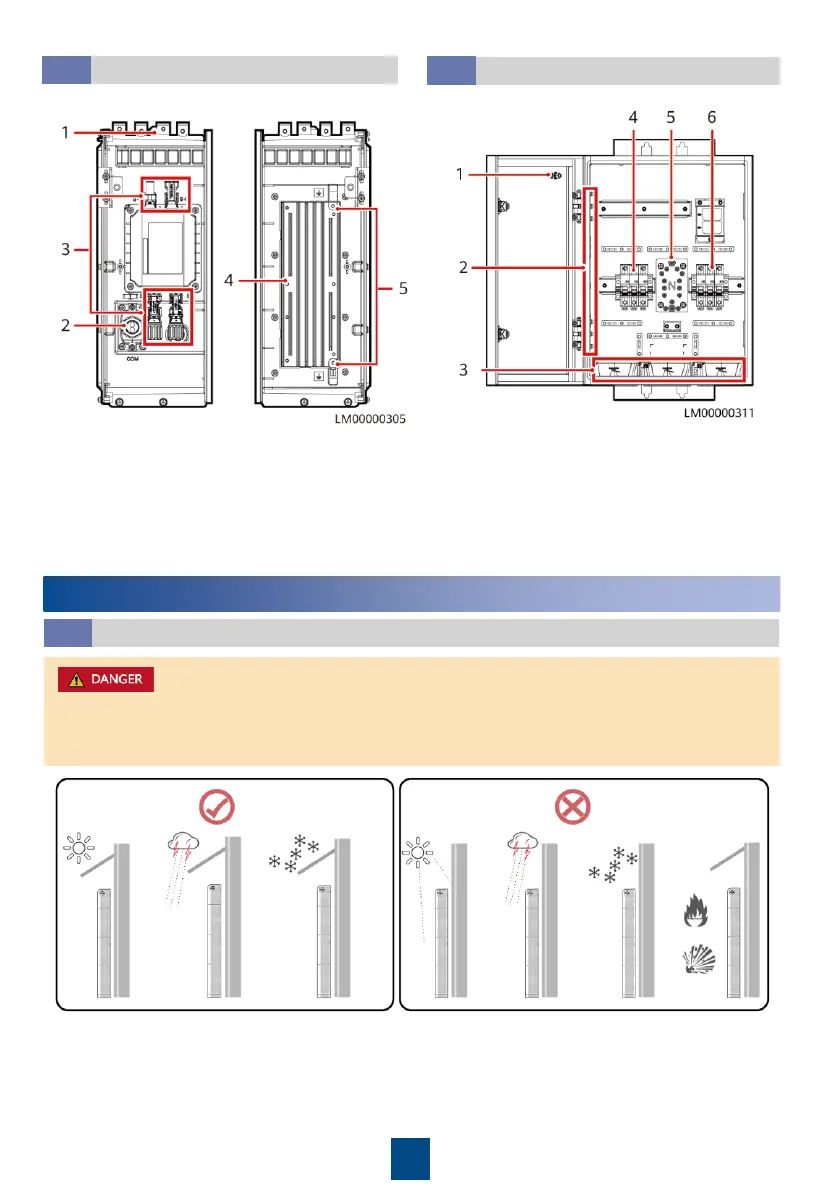

(1) Alignment boss
(2) COM port
(3) Terminals for battery module cascading
(4) Heat sink
(5) Ground points
Battery Module
2.3
(1) Ground point on the door
(2) Ground bar
(3) Cable bags
(4)
AC input circuit breaker
(5)
N wiring terminal
(6) AC output circuit breaker
AC Parallel Box
2.4
Left view Right view
3
Installation Preparations
Installation Environment Requirements
3.1
If a battery module is dropped or violently impacted during installation, it may become
faulty and cannot be used. Using a faulty module will cause safety risks such as cell leakage
and electric shock.

Huawei iSitePower-M Specifications

General

Storage Temperature	-40°C to +70°C
Product Name	Huawei iSitePower-M
Type	Power System
Efficiency	≥96%
Output Voltage	-48 V DC
Operating Temperature	-40°C to +55°C
Relative Humidity	5% to 95% (non-condensing)
Altitude	Up to 4000 m
Cooling Method	Forced Air Cooling
Protection Features	Overvoltage, undervoltage, overcurrent, short circuit, overtemperature
Certifications	CE, UL, TUV
Input Voltage Range	85 V - 300 V AC
