Installation Dimensions
3.4
Top view
4
Installing a Mounting Bracket
Ground Mounting

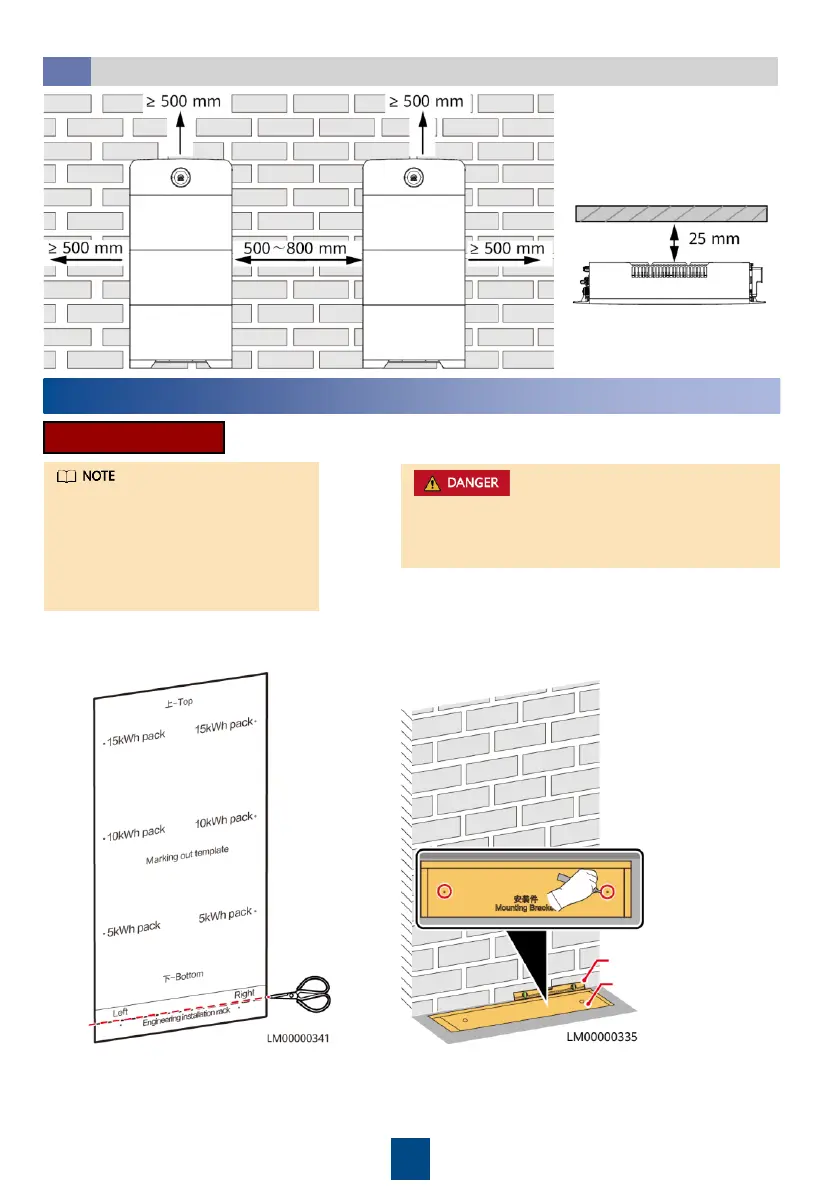

Two marking out templates are
required for ground mounting. A
small marking out template
determines holes on the ground,
and a large marking out template
determines holes on the wall.
1. Cut the marking out template
along the dotted line.
The base must be secured to the ground using
bolts. Otherwise, the device may tip over,
causing personal injury or device damage.
2. Mark mounting holes for the base.
Level
Marking out template
