Huawei iSitePower-M Quick Guide

4
2
Overview
The iSitePower-M is a fuel-free hybrid power solution for areas with no or poor mains supply.
Base
Power module
Battery
modules
Heat sink
LED indicator
Note: The 15 kWh model
is used as an example.
(1)
DC SWITCH (PV switch)
(2) PV inputs
(3) Battery module input ports
(4) COM
-PAR (communications port between parallel power modules)
(5) COM
-BAT (communications port between the power module and battery module)
(6)
4G wireless backhaul module port
(7) Maintenance compartment door
(8) Ground point
(9) AC input
(10) AC output
(11) Reserved ports
(12) DIP switch
(13) FE ports
(communications ports
)
(14) COM port and dry contacts
(15)
WiFi button
(16) Manual ON/OFF switch
iSitePower-M
2.1
Power Module
2.2

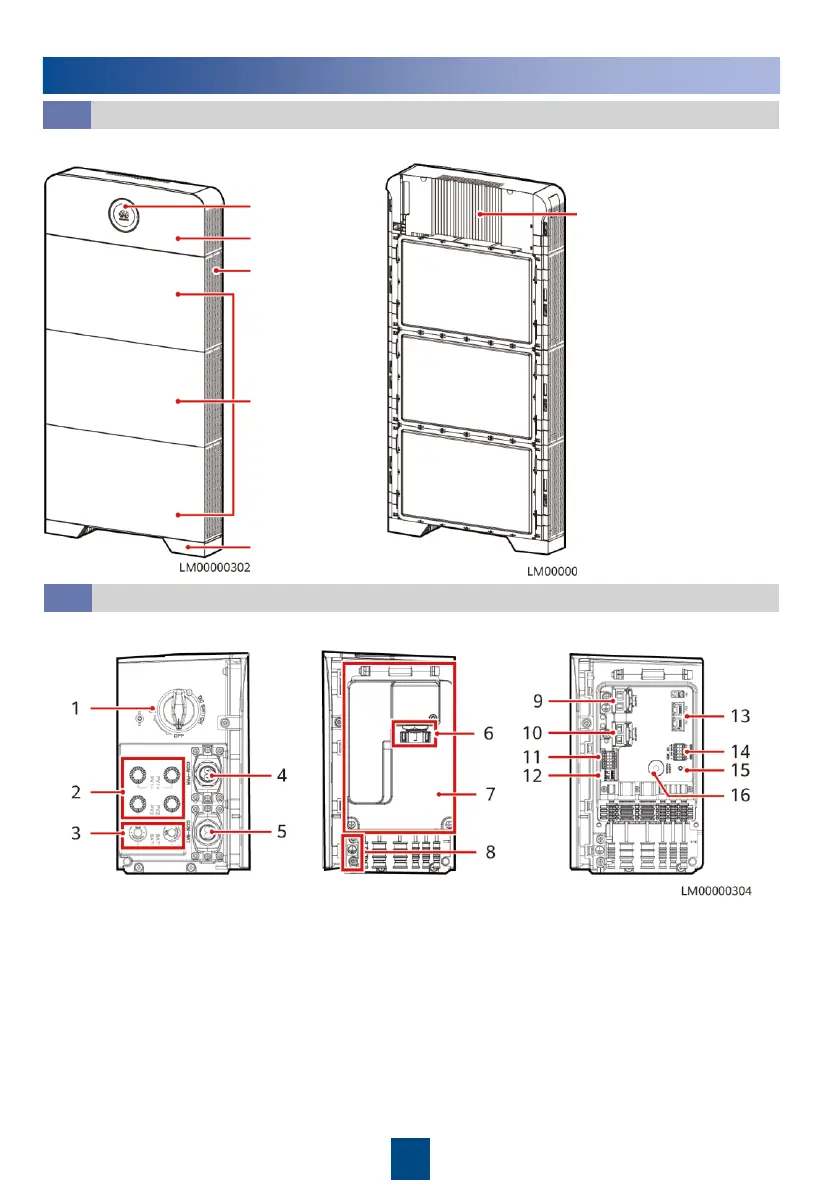

Left view Right view (door opened)
Decorative
cover
Right view

Huawei iSitePower-M Specifications

General

Storage Temperature	-40°C to +70°C
Product Name	Huawei iSitePower-M
Type	Power System
Efficiency	≥96%
Output Voltage	-48 V DC
Operating Temperature	-40°C to +55°C
Relative Humidity	5% to 95% (non-condensing)
Altitude	Up to 4000 m
Cooling Method	Forced Air Cooling
Protection Features	Overvoltage, undervoltage, overcurrent, short circuit, overtemperature
Certifications	CE, UL, TUV
Input Voltage Range	85 V - 300 V AC
