Huawei iSitePower-M Quick Guide

26
Short-circuit plate

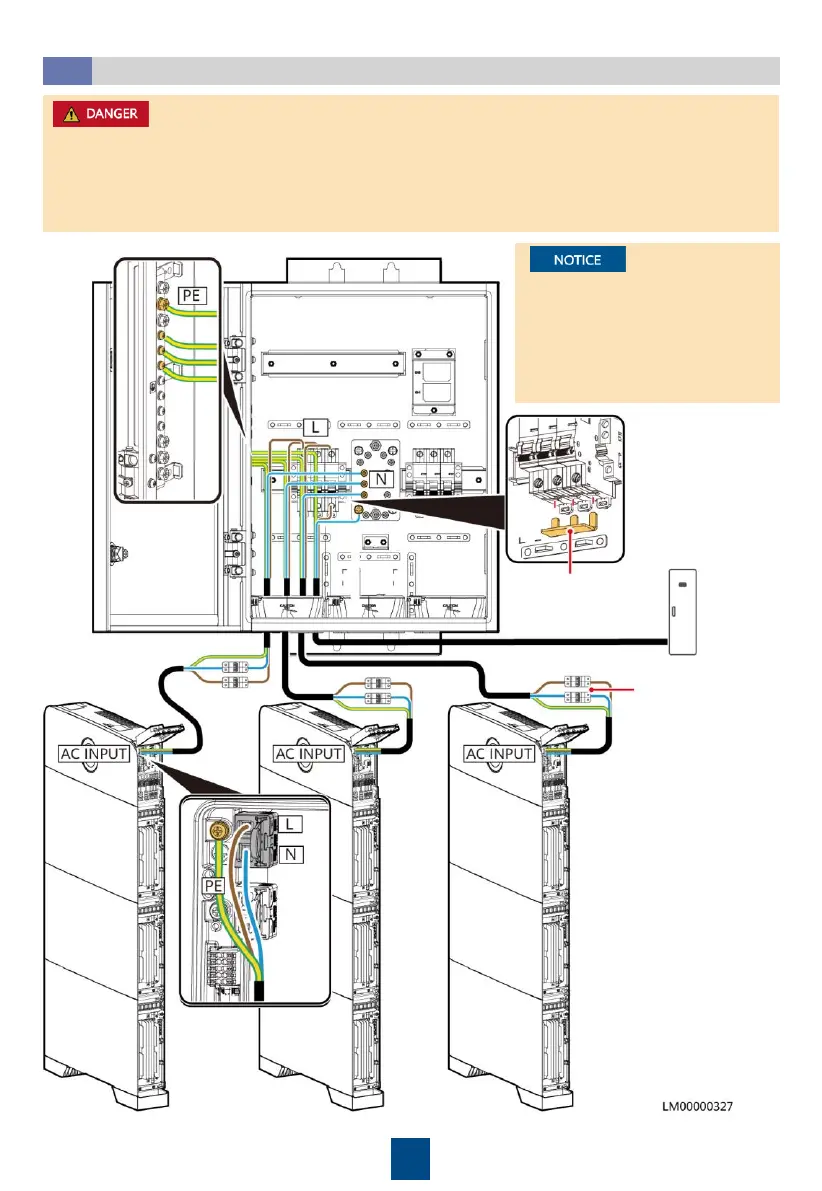

Installing AC Input Power Cables in a Parallel System
7.7
•
Install a short-circuit plate
for AC input circuit breakers.
•
The three cables from the
AC input circuit breakers to
the power modules must be
of the same length.
AC power
distribution cabinet
(PDC)
AC switch
• Before installing an AC input power cable, ensure that the upstream AC input switch is turned
off and a prominent label indicating "Do not operate" is set.
• AC switches (with a capacity of 40 A) must be installed for phases L and N of the iSitePower-
M AC input. The AC switches are delivered with the iSitePower-M. Do not use a Type D circuit
breaker because it cannot effectively protect products.

Huawei iSitePower-M Specifications

General

Storage Temperature	-40°C to +70°C
Product Name	Huawei iSitePower-M
Type	Power System
Efficiency	≥96%
Output Voltage	-48 V DC
Operating Temperature	-40°C to +55°C
Relative Humidity	5% to 95% (non-condensing)
Altitude	Up to 4000 m
Cooling Method	Forced Air Cooling
Protection Features	Overvoltage, undervoltage, overcurrent, short circuit, overtemperature
Certifications	CE, UL, TUV
Input Voltage Range	85 V - 300 V AC
